6 Installazione dell'interfaccia web
Questa sezione fornisce istruzioni dettagliate per l'installazione di Zabbix interfaccia web. Il frontend di Zabbix è scritto in PHP, quindi per eseguirlo è PHP è necessario un server web supportato.
Puoi scoprire di più sulla configurazione di SSL per il frontend Zabbix facendo riferimento a queste migliori pratiche.

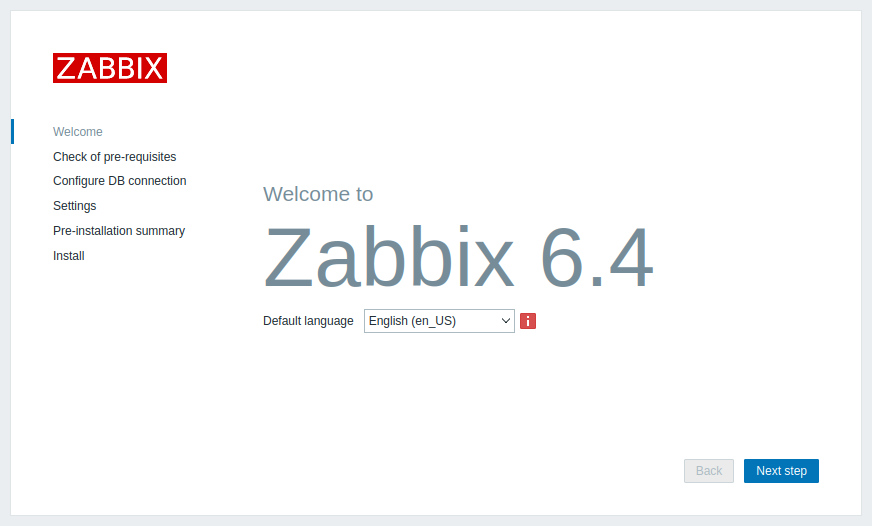

Welcome screen
Open Zabbix frontend URL in the browser. If you have installed Zabbix from packages, the URL is:
- for Apache: http://<server_ip_or_name>/zabbix
- for Nginx: http://<server_ip_or_name>
You should see the first screen of the frontend installation wizard.
Use the Default language drop-down menu to change system default language and continue the installation process in the selected language (optional). For more information, see Installation of additional frontend languages.

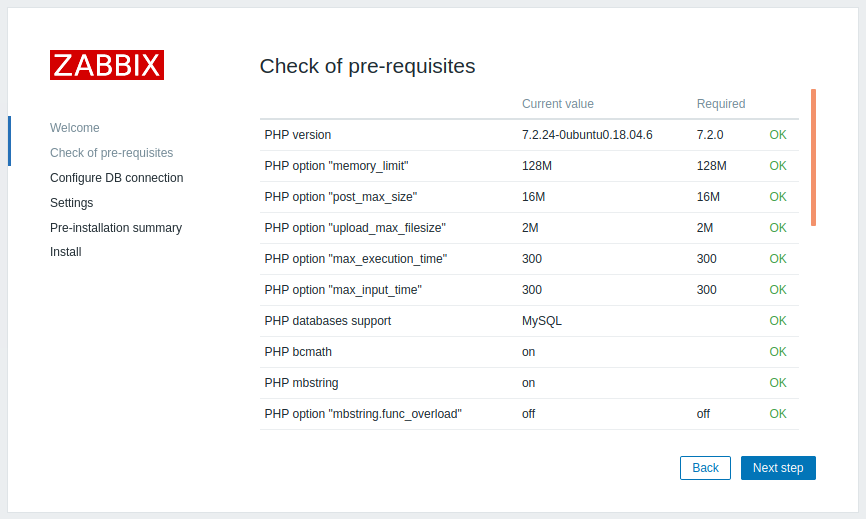

Check of pre-requisites
Make sure that all software prerequisites are met.
| Pre-requisite | Minimum value | Description |
|---|---|---|
| PHP version | 7.2.5 | |
| PHP memory_limit option | 128MB | In php.ini: memory_limit = 128M |
| PHP post_max_size option | 16MB | In php.ini: post_max_size = 16M |
| PHP upload_max_filesize option | 2MB | In php.ini: upload_max_filesize = 2M |
| PHP max_execution_time option | 300 seconds (values 0 and -1 are allowed) | In php.ini: max_execution_time = 300 |
| PHP max_input_time option | 300 seconds (values 0 and -1 are allowed) | In php.ini: max_input_time = 300 |
| PHP session.auto_start option | must be disabled | In php.ini: session.auto_start = 0 |
| Database support | One of: MySQL, Oracle, PostgreSQL. | One of the following modules must be installed: mysql, oci8, pgsql |
| bcmath | php-bcmath | |
| mbstring | php-mbstring | |
| PHP mbstring.func_overload option | must be disabled | In php.ini: mbstring.func_overload = 0 |
| sockets | php-net-socket. Required for user script support. | |
| gd | 2.0.28 | php-gd. PHP GD extension must support PNG images (--with-png-dir), JPEG (--with-jpeg-dir) images and FreeType 2 (--with-freetype-dir). |
| libxml | 2.6.15 | php-xml |
| xmlwriter | php-xmlwriter | |
| xmlreader | php-xmlreader | |
| ctype | php-ctype | |
| session | php-session | |
| gettext | php-gettext Since Zabbix 2.2.1, the PHP gettext extension is not a mandatory requirement for installing Zabbix. If gettext is not installed, the frontend will work as usual, however, the translations will not be available. |
|
Optional pre-requisites may also be present in the list. A failed optional prerequisite is displayed in orange and has a Warning status. With a failed optional pre-requisite, the setup may continue.
If there is a need to change the Apache user or user group, permissions to the session folder must be verified. Otherwise Zabbix setup may be unable to continue.

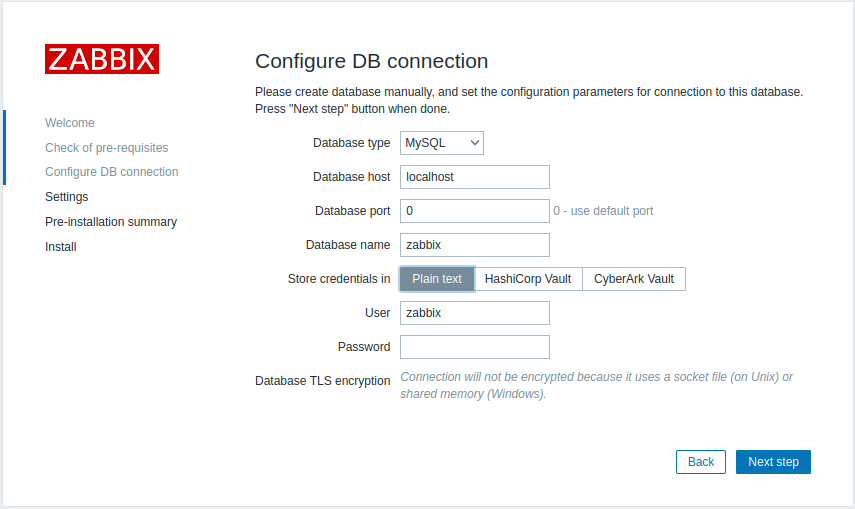

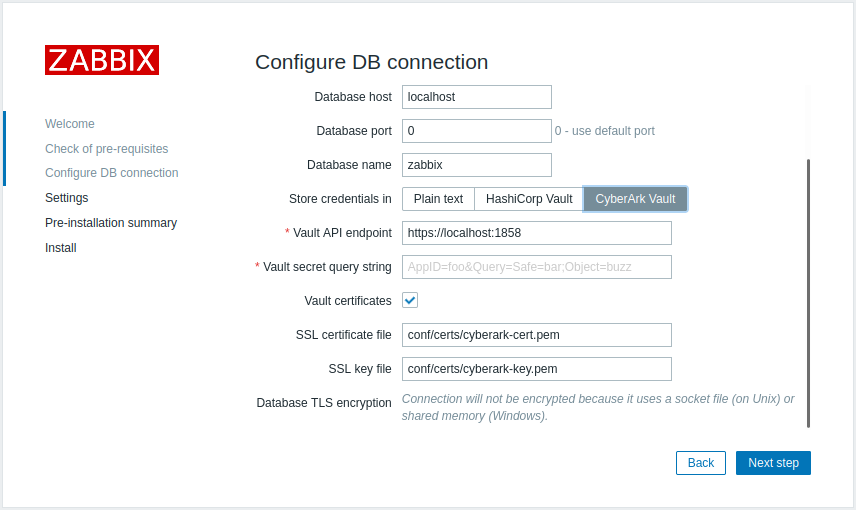

Configure DB connection
Enter details for connecting to the database. Zabbix database must already be created.
If the Database TLS encryption option is checked, then additional fields for configuring the TLS connection to the database appear in the form (MySQL or PostgreSQL only).
If HashiCorp Vault option is selected for storing credentials, additional fields are available for specifying the Vault API endpoint, secret path and authentication token:

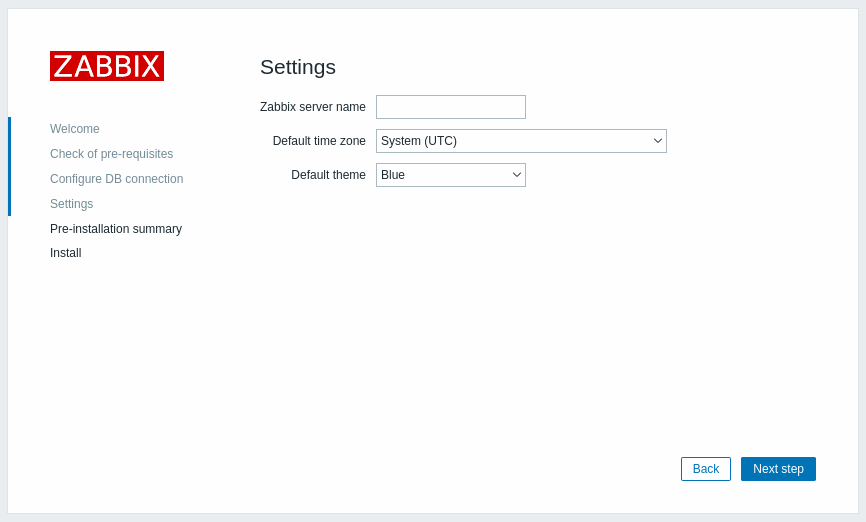

Settings
Entering a name for Zabbix server is optional, however, if submitted, it will be displayed in the menu bar and page titles.
Set the default time zone and theme for the frontend.

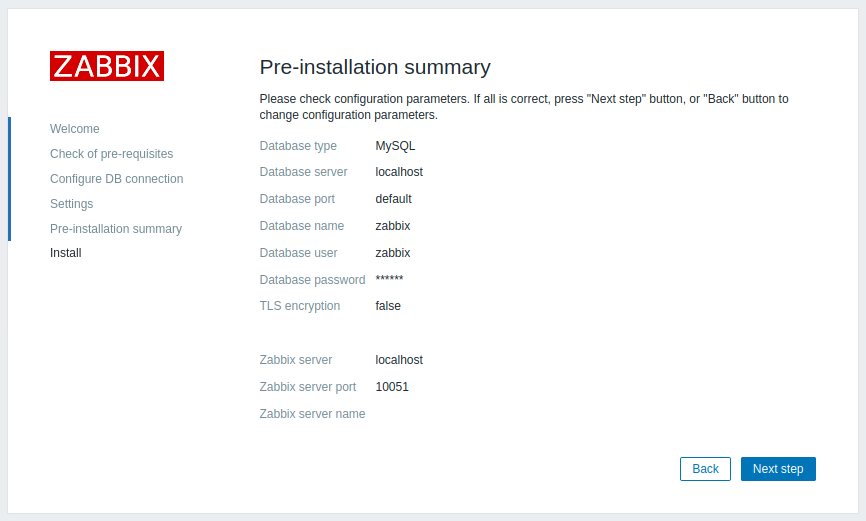

Pre-installation summary
Review a summary of settings.

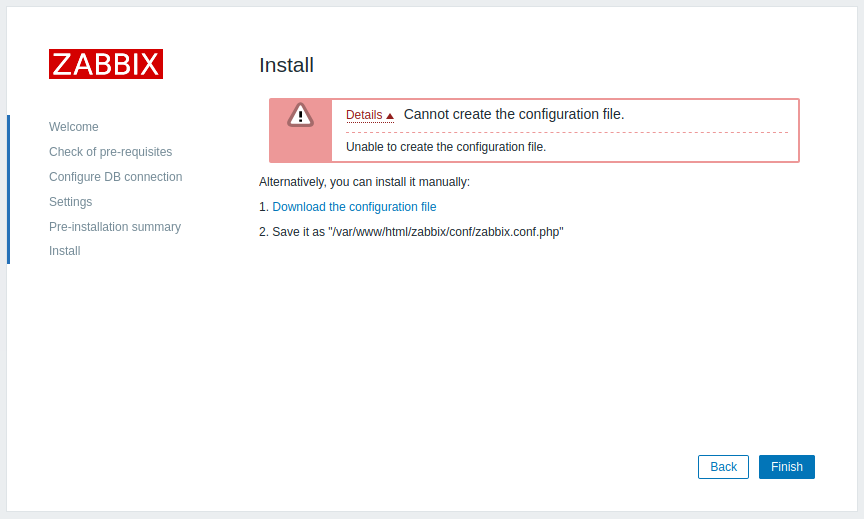

Install

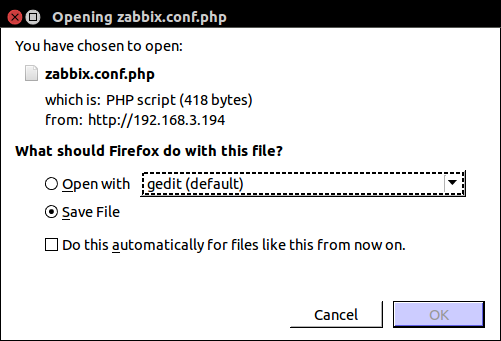

If installing Zabbix from sources, download the configuration file and place it under conf/ in the webserver HTML documents subdirectory where you copied Zabbix PHP files to.
Providing the webserver user has write access to conf/ directory the configuration file would be saved automatically and it would be possible to proceed to the next step right away.
Finish the installation.

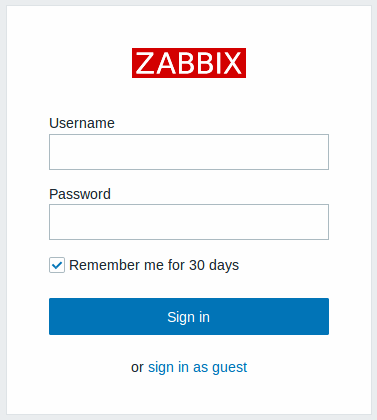

Log in
Zabbix frontend is ready! The default user name is Admin, password zabbix.
Proceed to getting started with Zabbix.
