3 Grafici
Overview

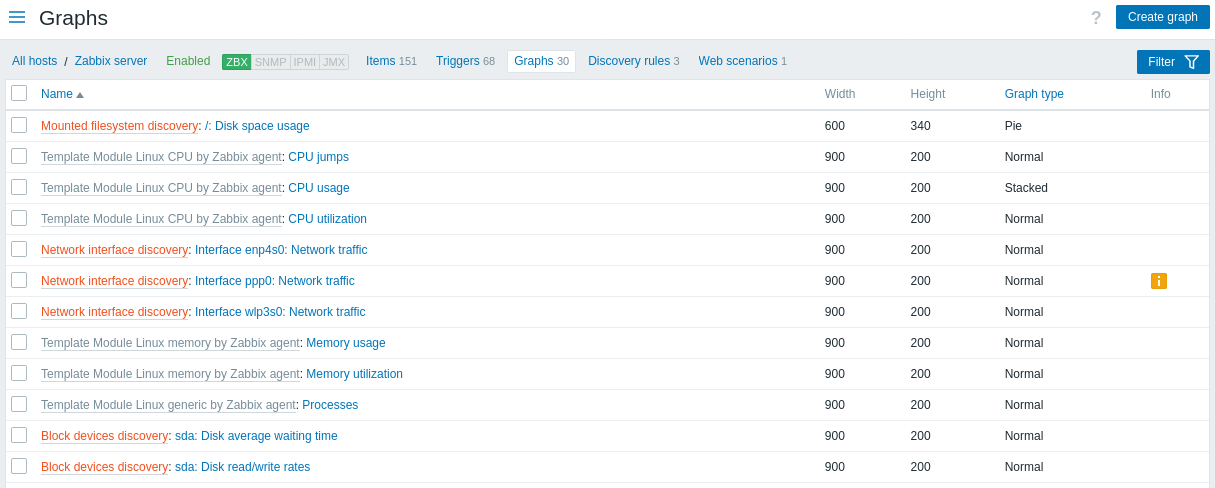

The custom graph list for a host can be accessed from Data collection → Hosts by clicking on Graphs for the respective host.
A list of existing graphs is displayed.
Displayed data:
| Column | Description |
|---|---|
| Name | Name of the custom graph, displayed as a blue link to graph details. Clicking on the graph name link opens the graph configuration form. If the host graph belongs to a template, the template name is displayed before the graph name, as a gray link. Clicking on the template link will open the graph list on the template level. If the graph has been created from a graph prototype, its name is preceded by the low-level discovery rule name, in orange. Clicking on the discovery rule name will open the graph prototype list. |
| Width | Graph width is displayed. |
| Height | Graph height is displayed. |
| Graph type | Graph type is displayed - Normal, Stacked, Pie or Exploded. |
| Info | If the graph is working correctly, no icon is displayed in this column. In case of errors, a square icon with the letter "i" is displayed. Hover over the icon to see a tooltip with the error description. |
To configure a new graph, click on the Create graph button at the top right corner.
Opzioni di modifica di massa
I pulsanti sotto l'elenco offrono alcune opzioni di modifica di massa:
- Copia - copia i grafici su altri host o modelli
- Cancella - cancella i grafici
Per utilizzare queste opzioni, contrassegnare le caselle prima dei rispettivi grafici, quindi fare clic sul pulsante richiesto.
Using filter
You can filter graphs by host group and host. For better search performance, data is searched with macros unresolved.
