16 为 VMware 创建自定义性能计数器名称

概述

VMware性能计数器路径遵循 group/counter[rollup]格式，其中：

group - 性能计数器组，例如cpu
counter - 性能计数器名称，例如usagemhz
rollup - 性能计数器汇总类型，例如

average

因此上述示例将生成以下计数器路径： cpu/usagemhz[average]

性能计数器组描述、计数器名称及汇总类型可在VMware documentation中查阅。

通过使用Zabbix中的监控项脚本，可获取内部名称及create自定义性能计数器名称。

配置

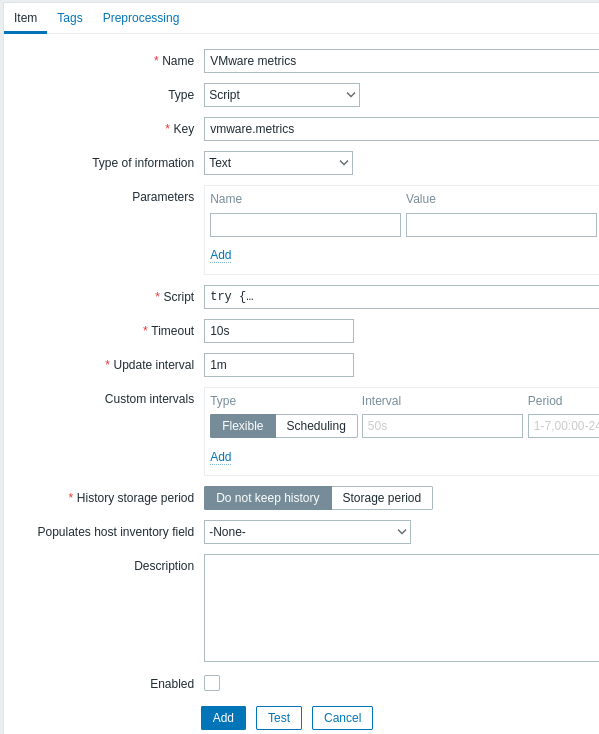

在主VMware 主机上创建一个禁用的脚本监控项（存在 eventlog[] 监控项的地方），并设置以下参数：

名称: VMware指标
类型: 脚本
键: vmware.metrics
信息类型: 文本
脚本: copy 并粘贴下方提供的脚本
超时: 10
历史数据存储周期: 不保留历史记录
Enabled: 未标记

脚本

try {
           Zabbix.log(4, 'vmware metrics script');

           var result, resp,

           req = new HttpRequest();
           req.addHeader('Content-Type: application/xml');
           req.addHeader('SOAPAction: "urn:vim25/6.0"');

           login = '<soapenv:Envelope xmlns:soapenv="http://schemas.xmlsoap.org/soap/envelope/" xmlns:urn="urn:vim25">\

           <soapenv:Header/>\
           <soapenv:Body>\
               <urn:Login>\
                   <urn:_this type="SessionManager">SessionManager</urn:_this>\
                   <urn:userName>{$VMWARE.USERNAME}</urn:userName>\
                   <urn:password>{$VMWARE.PASSWORD}</urn:password>\
               </urn:Login>\
           </soapenv:Body>\
       </soapenv:Envelope>'
           resp = req.post("{$VMWARE.URL}", login);
           if (req.getStatus() != 200) {
               throw 'Response code: '+req.getStatus();
           }

           query = '<soapenv:Envelope xmlns:soapenv="http://schemas.xmlsoap.org/soap/envelope/" xmlns:urn="urn:vim25">\

       <soapenv:Header/>\
           <soapenv:Body>\
               <urn:RetrieveProperties>\
                   <urn:_this type="PropertyCollector">propertyCollector</urn:_this>\
                   <urn:specSet>\
                       <urn:propSet>\
                          <urn:type>PerformanceManager</urn:type>\
                          <urn:pathSet>perfCounter</urn:pathSet>\
                       </urn:propSet>\
                       <urn:objectSet>\
                          <urn:obj type="PerformanceManager">PerfMgr</urn:obj>\
                       </urn:objectSet>\
                   </urn:specSet>\
               </urn:RetrieveProperties>\
           </soapenv:Body>\
       </soapenv:Envelope>'
           resp = req.post("{$VMWARE.URL}", query);
           if (req.getStatus() != 200) {
               throw 'Response code: '+req.getStatus();
           }
           Zabbix.log(4, 'vmware metrics=' + resp);
           result = resp;

           logout = '<soapenv:Envelope xmlns:soapenv="http://schemas.xmlsoap.org/soap/envelope/" xmlns:urn="urn:vim25">\

           <soapenv:Header/>\
           <soapenv:Body>\
               <urn:Logout>\
                   <urn:_this type="SessionManager">SessionManager</urn:_this>\
               </urn:Logout>\
           </soapenv:Body>\
       </soapenv:Envelope>'

           resp = req.post("{$VMWARE.URL}",logout);

           if (req.getStatus() != 200) {
               throw 'Response code: '+req.getStatus();
           }

       } catch (error) {

           Zabbix.log(4, 'vmware call failed : '+error);
           result = {};
       }

       返回结果;

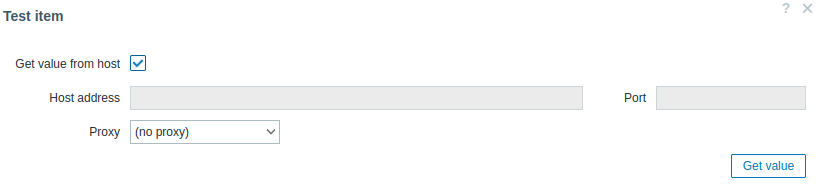

一旦配置好监控项，点击Test按钮，然后点击Get value。

将接收到的XML复制到任意XML格式化工具中并查找所需的指标。

一个指标的XML示例:

<PerfCounterInfo xsi:type="PerfCounterInfo">
           <key>6</key>
           <nameInfo>
               <label>Usage in MHz</label>
               <summary>CPU usage in megahertz during the interval</summary>
               <key>usagemhz</key>
           </nameInfo>
           <groupInfo>
               <label>CPU</label>
               <summary>CPU</summary>
               <key>cpu</key>
           </groupInfo>
           <unitInfo>
               <label>MHz</label>
               <summary>Megahertz</summary>
               <key>megaHertz</key>
           </unitInfo>
           <rollupType>average</rollupType>
           <statsType>rate</statsType>
           <level>1</level>
           <perDeviceLevel>3</perDeviceLevel>
       </PerfCounterInfo>

使用XPath从接收到的XML中提取计数器路径。对于上述示例，XPath表达式为：

字段	xPath	值
group	//groupInfo[../key=6]/key	cpu
counter	//nameInfo[../key=6]/key	usagemhz
rollup	//rollupType[../key=6]	平均值

在此情况下的性能计数器路径为：cpu/usagemhz[average]
