1 Configuring a trigger
Overview
To configure a trigger, do the following:
- Go to: Configuration → Hosts
- Click on Triggers in the row of the host
- Click on Create trigger to the right (or on the trigger name to edit an existing trigger)
- Enter parameters of the trigger in the form
Configuration

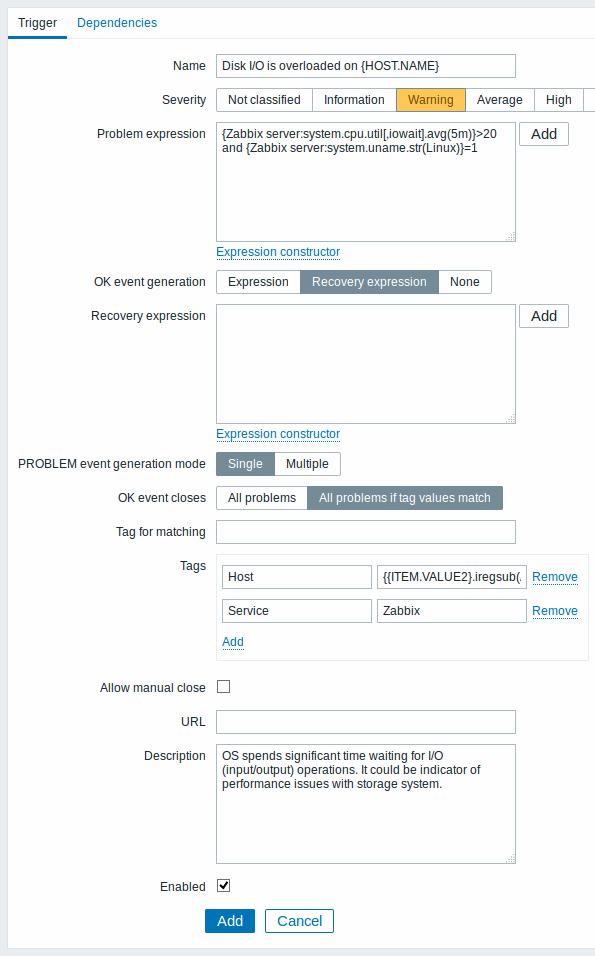

The Trigger tab contains all the essential trigger attributes.
| Parameter | Description |
|---|---|
| Name | Trigger name. The name may contain the supported macros: {HOST.HOST}, {HOST.NAME}, {HOST.CONN}, {HOST.DNS}, {HOST.IP}, {ITEM.VALUE}, {ITEM.LASTVALUE} and {$MACRO}.$1, $2...$9 macros can be used to refer to the first, second...ninth constant of the expression. Note: $1-$9 macros will resolve correctly if referring to constants in relatively simple, straightforward expressions. For example, the name "Processor load above $1 on {HOST.NAME}" will automatically change to "Processor load above 5 on New host" if the expression is {New host:system.cpu.load[percpu,avg1].last()}>5 |
| Severity | Set the required trigger severity by clicking the buttons. |
| Problem expression | Logical expression used to define the conditions of a problem. |
| OK event generation | OK event generation options: Expression - OK events are generated based on the same expression as problem events; Recovery expression - OK events are generated if the problem expression evaluates to FALSE and the recovery expression evaluates to TRUE; None - in this case the trigger will never return to an OK state on its own. Supported since Zabbix 3.2.0. |
| Recovery expression | Logical expression used to define the conditions when the problem is resolved. Recovery expression is evaluated only after the problem expression evaluates to FALSE. It is not possible to resolve a problem by recovery expression if the problem condition still persists. This field is optional and only available if 'Recovery expression' is selected for OK event generation. Supported since Zabbix 3.2.0. |
| PROBLEM event generation mode | Mode for generating problem events: Single - a single event is generated when a trigger goes into the 'Problem' state for the first time; Multiple - an event is generated upon every 'Problem' evaluation of the trigger. |
| OK event closes | Select if OK event closes: All problems - all problems of this trigger All problems if tag values match - only those trigger problems with matching event tag values Supported since Zabbix 3.2.0. |
| Tag for matching | Enter event tag name to use for event correlation. This field is displayed if 'All problems if tag values match' is selected for the OK event closes property and is mandatory in this case. User macros and user macro context is supported since Zabbix 3.2.2. Low-level discovery macros can be used inside user macro context. Supported since Zabbix 3.2.0. |
| Tags | Set custom tags to mark trigger events. Event tags can be used for event correlation, in action conditions and will also be seen in Monitoring → Problems. Tags are a pair of tag name and value. You can use only the name or pair it with a value. Both tag names and tag values may include low-level discovery macros and macro functions: {{ITEM.VALUE}.regsub(pattern, output)}, {{ITEM.VALUE}.iregsub(pattern, output)}. If the total length of expanded value exceeds 255, it will be cut to 255 characters.User macros and user macro context is supported since Zabbix 3.2.2. Low-level discovery macros can be used inside user macro context. Note that in Zabbix 3.2.0, 3.2.1 it is not allowed to use a forward slash in the tag name. Event tags are supported since Zabbix 3.2.0. |
| Allow manual close | Check to allow manual closing of problem events generated by this trigger. Manual closing is possible when acknowledging problem events. This field is available if event acknowledgement is activated in Administration → General. Supported since Zabbix 3.2.0. |
| URL | If not empty, the URL entered here is available as a link when clicking on the trigger name in Monitoring → Triggers. Macros may be used in the trigger URL field - {TRIGGER.ID}, several {HOST.*} macros (since Zabbix 3.0.0) and user macros (since Zabbix 3.0.0). |
| Description | Text field used to provide more information about this trigger. May contain instructions for fixing specific problem, contact detail of responsible staff, etc. Starting with Zabbix 2.2, the description may contain the same set of macros as trigger name. |
| Enabled | Unchecking this box will disable the trigger if required. |
The Dependencies tab contains all the dependencies of the trigger.
Click on Add to add a new dependency.
You can also configure a trigger by opening an existing one, pressing the Clone button and then saving under a different name.
