5 Network maps

Overview

Network map export contains:

all related images
map structure - all map settings, all contained elements with their settings, map links and map link status indicators

Any host groups, hosts, triggers, other maps or other elements that may be related to the exported map are not exported. Thus, if at least one of the elements the map refers to is missing, importing it will fail.

Network map export/import is supported since Zabbix 1.8.2.

Exporting

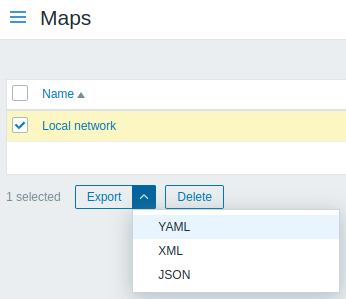

To export network maps, do the following:

Go to: Monitoring → Maps
Mark the checkboxes of the network maps to export
Click on Export below the list

Depending on the selected format, maps are exported to a local file with a default name:

zabbix_export_maps.yaml - in YAML export (default option for export)
zabbix_export_maps.xml - in XML export
zabbix_export_maps.json - in JSON export

Importing

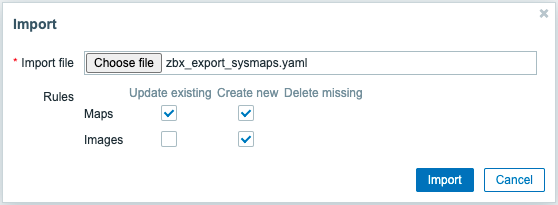

To import network maps, do the following:

Go to: Monitoring → Maps
Click on Import to the right
Select the import file
Mark the required options in import rules
Click on Import

All mandatory input fields are marked with a red asterisk.

A success or failure message of the import will be displayed in the frontend.

Import rules:

Rule	Description
Update existing	Existing maps will be updated with data taken from the import file. Otherwise they will not be updated.
Create new	The import will add new maps using data from the import file. Otherwise it will not add them.

If you uncheck both map options and check the respective options for images, images only will be imported. Image importing is only available to Super Admin users.

If replacing an existing image, it will affect all maps that are using this image.

Export format

Export to YAML:

zabbix_export:
         version: '6.2'
         date: '2021-08-31T12:55:10Z'
         images:
           -
             name: Zabbix_server_3D_(128)
             imagetype: '1'
             encodedImage: iVBOR...5CYII=
         maps:
           -
             name: 'Local network'
             width: '680'
             height: '200'
             label_type: '0'
             label_location: '0'
             highlight: '1'
             expandproblem: '1'
             markelements: '1'
             show_unack: '0'
             severity_min: '0'
             show_suppressed: '0'
             grid_size: '50'
             grid_show: '1'
             grid_align: '1'
             label_format: '0'
             label_type_host: '2'
             label_type_hostgroup: '2'
             label_type_trigger: '2'
             label_type_map: '2'
             label_type_image: '2'
             label_string_host: ''
             label_string_hostgroup: ''
             label_string_trigger: ''
             label_string_map: ''
             label_string_image: ''
             expand_macros: '1'
             background: {  }
             iconmap: {  }
             urls: {  }
             selements:
               -
                 elementtype: '0'
                 elements:
                   -
                     host: 'Zabbix server'
                 label: |
                   {HOST.NAME}
                   {HOST.CONN}
                 label_location: '0'
                 x: '111'
                 'y': '61'
                 elementsubtype: '0'
                 areatype: '0'
                 width: '200'
                 height: '200'
                 viewtype: '0'
                 use_iconmap: '0'
                 selementid: '1'
                 icon_off:
                   name: Zabbix_server_3D_(128)
                 icon_on: {  }
                 icon_disabled: {  }
                 icon_maintenance: {  }
                 urls: {  }
                 evaltype: '0'
             shapes:
               -
                 type: '0'
                 x: '0'
                 'y': '0'
                 width: '680'
                 height: '15'
                 text: '{MAP.NAME}'
                 font: '9'
                 font_size: '11'
                 font_color: '000000'
                 text_halign: '0'
                 text_valign: '0'
                 border_type: '0'
                 border_width: '0'
                 border_color: '000000'
                 background_color: ''
                 zindex: '0'
             lines: {  }
             links: {  }

Element tags

Element tag values are explained in the table below.

Element	Element property	Type	Range	Description
images				Root element for images.
	name	`string`		Unique image name.
	imagetype	`integer`	1 - image 2 - background	Image type.
	encodedImage			Base64 encoded image.
maps				Root element for maps.
	name	`string`		Unique map name.
	width	`integer`		Map width, in pixels.
	height	`integer`		Map height, in pixels.
	label_type	`integer`	0 - label 1 - host IP address 2 - element name 3 - status only 4 - nothing	Map element label type.
	label_location	`integer`	0 - bottom 1 - left 2 - right 3 - top	Map element label location by default.
	highlight	`integer`	0 - no 1 - yes	Enable icon highlighting for active triggers and host statuses.
	expandproblem	`integer`	0 - no 1 - yes	Display problem trigger for elements with a single problem.
	markelements	`integer`	0 - no 1 - yes	Highlight map elements that have recently changed their status.
	show_unack	`integer`	0 - count of all problems 1 - count of unacknowledged problems 2 - count of acknowledged and unacknowledged problems separately	Problem display.
	severity_min	`integer`	0 - not classified 1 - information 2 - warning 3 - average 4 - high 5 - disaster	Minimum trigger severity to show on the map by default.
	show_suppressed	`integer`	0 - no 1 - yes	Display problems which would otherwise be suppressed (not shown) because of host maintenance.
	grid_size	`integer`	20, 40, 50, 75 or 100	Cell size of a map grid in pixels, if "grid_show=1"
	grid_show	`integer`	0 - yes 1 - no	Display a grid in map configuration.
	grid_align	`integer`	0 - yes 1 - no	Automatically align icons in map configuration.
	label_format	`integer`	0 - no 1 - yes	Use advanced label configuration.
	label_type_host	`integer`	0 - label 1 - host IP address 2 - element name 3 - status only 4 - nothing 5 - custom label	Display as host label, if "label_format=1"
	label_type_hostgroup	`integer`	0 - label 2 - element name 3 - status only 4 - nothing 5 - custom label	Display as host group label, if "label_format=1"
	label_type_trigger	`integer`	0 - label 2 - element name 3 - status only 4 - nothing 5 - custom label	Display as trigger label, if "label_format=1"
	label_type_map	`integer`	0 - label 2 - element name 3 - status only 4 - nothing 5 - custom label	Display as map label, if "label_format=1"
	label_type_image	`integer`	0 - label 2 - element name 4 - nothing 5 - custom label	Display as image label, if "label_format=1"
	label_string_host	`string`		Custom label for host elements, if "label_type_host=5"
	label_string_hostgroup	`string`		Custom label for host group elements, if "label_type_hostgroup=5"
	label_string_trigger	`string`		Custom label for trigger elements, if "label_type_trigger=5"
	label_string_map	`string`		Custom label for map elements, if "label_type_map=5"
	label_string_image	`string`		Custom label for image elements, if "label_type_image=5"
	expand_macros	`integer`	0 - no 1 - yes	Expand macros in labels in map configuration.
	background	`id`		ID of the background image (if any), if "imagetype=2"
	iconmap	`id`		ID of the icon mapping (if any).
urls				Used by maps or each map element.
	name	`string`		Link name.
	url	`string`		Link URL.
	elementtype	`integer`	0 - host 1 - map 2 - trigger 3 - host group 4 - image	Map item type the link belongs to.
selements
	elementtype	`integer`	0 - host 1 - map 2 - trigger 3 - host group 4 - image	Map element type.
	label	`string`		Icon label.
	label_location	`integer`	-1 - use map default 0 - bottom 1 - left 2 - right 3 - top
	x	`integer`		Location on the X axis.
	y	`integer`		Location on the Y axis.
	elementsubtype	`integer`	0 - single host group 1 - all host groups	Element subtype, if "elementtype=3"
	areatype	`integer`	0 - same as whole map 1 - custom size	Area size, if "elementsubtype=1"
	width	`integer`		Width of area, if "areatype=1"
	height	`integer`		Height of area, if "areatype=1"
	viewtype	`integer`	0 - place evenly in the area	Area placement algorithm, if "elementsubtype=1"
	use_iconmap	`integer`	0 - no 1 - yes	Use icon mapping for this element. Relevant only if iconmapping is activated on map level.
	selementid	`id`		Unique element record ID.
	evaltype	`integer`		Evaluation type for tags.
tags				Problem tags (for host and host group elements). If tags are given, only problems with these tags will be displayed on the map.
	tag			Tag name.
	value			Tag value.
	operator			Operator.
elements				Zabbix entities that are represented on the map (host, host group, map etc).
	host
icon_off				Image to use when element is in 'OK' status.
icon_on				Image to use when element is in 'Problem' status.
icon_disabled				Image to use when element is disabled.
icon_maintenance				Image to use when element is in maintenance.
	name	`string`		Unique image name.
shapes
	type	`integer`	0 - rectangle 1 - ellipse	Shape type.
	x	`integer`		X coordinates of the shape in pixels.
	y	`integer`		Y coordinates of the shape in pixels.
	width	`integer`		Shape width.
	height	`integer`		Shape height.
	border_type	`integer`	0 - none 1 - bold line 2 - dotted line 3 - dashed line	Type of the border for the shape.
	border_width	`integer`		Width of the border in pixels.
	border_color	`string`		Border color represented in hexadecimal code.
	text	`string`		Text inside of shape.
	font	`integer`	0 - Georgia, serif 1 - "Palatino Linotype", "Book Antiqua", Palatino, serif 2 - "Times New Roman", Times, serif 3 - Arial, Helvetica, sans-serif 4 - "Arial Black", Gadget, sans-serif 5 - "Comic Sans MS", cursive, sans-serif 6 - Impact, Charcoal, sans-serif 7 - "Lucida Sans Unicode", "Lucida Grande", sans-serif 8 - Tahoma, Geneva, sans-serif 9 - "Trebuchet MS", Helvetica, sans-serif 10 - Verdana, Geneva, sans-serif 11 - "Courier New", Courier, monospace 12 - "Lucida Console", Monaco, monospace	Text font style.
	font_size	`integer`		Font size in pixels.
	font_color	`string`		Font color represented in hexadecimal code.
	text_halign	`integer`	0 - center 1 - left 2 - right	Horizontal alignment of text.
	text_valign	`integer`	0 - middle 1 - top 2 - bottom	Vertical alignment of text.
	background_color	`string`		Background (fill) color represented in hexadecimal code.
	zindex	`integer`		Value used to order all shapes and lines (z-index).
lines
	x1	`integer`		X coordinates of the line point 1 in pixels.
	y1	`integer`		Y coordinates of the line point 1 in pixels.
	x2	`integer`		X coordinates of the line point 2 in pixels.
	y2	`integer`		Y coordinates of the line point 2 in pixels.
	line_type	`integer`	0 - none 1 - bold line 2 - dotted line 3 - dashed line	Line type.
	line_width	`integer`		Line width in pixels.
	line_color	`string`		Line color represented in hexadecimal code.
	zindex	`integer`		Value used to order all shapes and lines (z-index).
links				Links between map elements.
	drawtype	`integer`	0 - line 2 - bold line 3 - dotted line 4 - dashed line	Link style.
	color	`string`		Link color (6 symbols, hex).
	label	`string`		Link label.
	selementid1	`id`		ID of one element to connect.
	selementid2	`id`		ID of the other element to connect.
linktriggers				Link status indicators.
	drawtype	`integer`	0 - line 2 - bold line 3 - dotted line 4 - dashed line	Link style when trigger is in the 'Problem' state.
	color	`string`		Link color (6 symbols, hex) when trigger is in the 'Problem' state.
trigger				Trigger used for indicating link status.
	description	`string`		Trigger name.
	expression	`string`		Trigger expression.
	recovery_expression	`string`		Trigger recovery expression.
