3 Hosts

Overview

Hosts are exported with many related objects and object relations.

Host export contains:

linked host groups
host data
template linkage
host group linkage
host interfaces
directly linked applications
directly linked items
directly linked triggers
directly linked graphs
directly linked discovery rules with all prototypes
directly linked web scenarios
host macros
host inventory data
value maps

Exporting

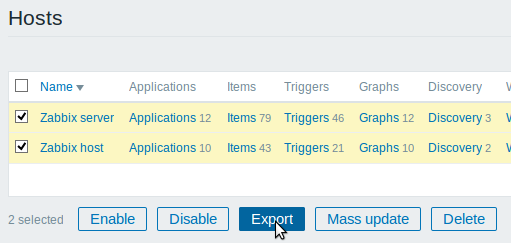

To export hosts, do the following:

Go to: Configuration → Hosts
Mark the checkboxes of the hosts to export
Click on Export below the list

Selected hosts are exported to a local XML file with default name zbx_export_hosts.xml.

Importing

To import hosts, do the following:

Go to: Configuration → Hosts
Click on Import to the right
Select the import file

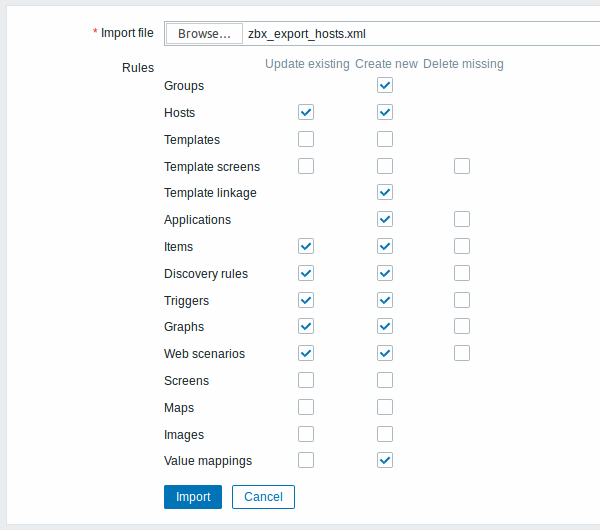

Mark the required options in import rules
Click on Import

When a host is imported and updated, it can only be linked to additional templates and never be unlinked from any.

A success or failure message of the import will be displayed in the frontend.

Import rules:

Rule	Description
Update existing	Existing elements will be updated with data taken from the import file. Otherwise they will not be updated.
Create new	The import will add new elements using data from the import file. Otherwise it will not add them.
Delete missing	The import will remove existing elements not present in the import file. Otherwise it will not remove them.

Export format

<?xml version="1.0" encoding="UTF-8"?>
       <zabbix_export>
           <version>4.0</version>
           <date>2018-04-03T08:11:42Z</date>
           <groups>
               <group>
                   <name>Zabbix servers</name>
               </group>
           </groups>
           <hosts>
               <host>
                   <host>Export host</host>
                   <name>Export host</name>
                   <description/>
                   <proxy/>
                   <status>0</status>
                   <ipmi_authtype>-1</ipmi_authtype>
                   <ipmi_privilege>2</ipmi_privilege>
                   <ipmi_username/>
                   <ipmi_password/>
                   <tls_connect>1</tls_connect>
                   <tls_accept>1</tls_accept>
                   <tls_issuer/>
                   <tls_subject/>
                   <tls_psk_identity/>
                   <tls_psk/>
                   <templates/>
                   <groups>
                       <group>
                           <name>Zabbix servers</name>
                       </group>
                   </groups>
                   <interfaces>
                       <interface>
                           <default>1</default>
                           <type>1</type>
                           <useip>1</useip>
                           <ip>127.0.0.1</ip>
                           <dns/>
                           <port>10050</port>
                           <bulk>1</bulk>
                           <interface_ref>if1</interface_ref>
                       </interface>
                   </interfaces>
                   <applications>
                       <application>
                           <name>Application</name>
                       </application>
                   </applications>
                   <items>
                       <item>
                           <name>Item</name>
                           <type>0</type>
                           <snmp_community/>
                           <snmp_oid/>
                           <key>item.key</key>
                           <delay>30s</delay>
                           <history>90d</history>
                           <trends>365d</trends>
                           <status>0</status>
                           <value_type>3</value_type>
                           <allowed_hosts/>
                           <units/>
                           <snmpv3_contextname/>
                           <snmpv3_securityname/>
                           <snmpv3_securitylevel>0</snmpv3_securitylevel>
                           <snmpv3_authprotocol>0</snmpv3_authprotocol>
                           <snmpv3_authpassphrase/>
                           <snmpv3_privprotocol>0</snmpv3_privprotocol>
                           <snmpv3_privpassphrase/>
                           <params/>
                           <ipmi_sensor/>
                           <authtype>0</authtype>
                           <username/>
                           <password/>
                           <publickey/>
                           <privatekey/>
                           <port/>
                           <description/>
                           <inventory_link>0</inventory_link>
                           <applications>
                               <application>
                                   <name>Application</name>
                               </application>
                           </applications>
                           <valuemap>
                               <name>Host status</name>
                           </valuemap>
                           <logtimefmt/>
                           <preprocessing/>
                           <jmx_endpoint/>
                           <timeout>3s</timeout>
                           <url/>
                           <query_fields/>
                           <posts/>
                           <status_codes>200</status_codes>
                           <follow_redirects>1</follow_redirects>
                           <post_type>0</post_type>
                           <http_proxy/>
                           <headers/>
                           <retrieve_mode>0</retrieve_mode>
                           <request_method>1</request_method>
                           <output_format>0</output_format>
                           <allow_traps>0</allow_traps>
                           <ssl_cert_file/>
                           <ssl_key_file/>
                           <ssl_key_password/>
                           <verify_peer>0</verify_peer>
                           <verify_host>0</verify_host>
                           <master_item/>
                           <interface_ref>if1</interface_ref>
                       </item>
                   </items>
                   <discovery_rules/>
                   <httptests/>
                   <macros/>
                   <inventory/>
               </host>
           </hosts>
           <triggers>
               <trigger>
                   <expression>{Export host:item.key.last()}<>0</expression>
                   <recovery_mode>0</recovery_mode>
                   <recovery_expression/>
                   <name>Item value not 0</name>
                   <correlation_mode>0</correlation_mode>
                   <correlation_tag/>
                   <url/>
                   <status>0</status>
                   <priority>2</priority>
                   <description/>
                   <type>0</type>
                   <manual_close>0</manual_close>
                   <dependencies/>
                   <tags/>
               </trigger>
           </triggers>
           <graphs>
               <graph>
                   <name>Example graph</name>
                   <width>900</width>
                   <height>200</height>
                   <yaxismin>0.0000</yaxismin>
                   <yaxismax>100.0000</yaxismax>
                   <show_work_period>1</show_work_period>
                   <show_triggers>1</show_triggers>
                   <type>0</type>
                   <show_legend>1</show_legend>
                   <show_3d>0</show_3d>
                   <percent_left>0.0000</percent_left>
                   <percent_right>0.0000</percent_right>
                   <ymin_type_1>0</ymin_type_1>
                   <ymax_type_1>0</ymax_type_1>
                   <ymin_item_1>0</ymin_item_1>
                   <ymax_item_1>0</ymax_item_1>
                   <graph_items>
                       <graph_item>
                           <sortorder>0</sortorder>
                           <drawtype>0</drawtype>
                           <color>1A7C11</color>
                           <yaxisside>0</yaxisside>
                           <calc_fnc>2</calc_fnc>
                           <type>0</type>
                           <item>
                               <host>Export host</host>
                               <key>item.key</key>
                           </item>
                       </graph_item>
                   </graph_items>
               </graph>
           </graphs>
           <value_maps>
               <value_map>
                   <name>Host status</name>
                   <mappings>
                       <mapping>
                           <value>0</value>
                           <newvalue>Up</newvalue>
                       </mapping>
                       <mapping>
                           <value>2</value>
                           <newvalue>Unreachable</newvalue>
                       </mapping>
                   </mappings>
               </value_map>
           </value_maps>
       </zabbix_export>

Element tags

Element tag values are explained in the table below.

Host tags

Element	Element property	Type	Range	Description
groups				Root element for groups.
group				Individual group.
	name	`string`		Unique group name.
hosts				Root element for hosts.
host				Individual host.
	host	`string`		Unique host name.
	name	`string`		Visible host name.
	description	`text`		Host description.
	status	`integer`	0 - monitored 1 - not monitored	Host status.
	ipmi_authtype	`integer`	-1 - default 0 - none 1 - MD2 2 - MD5 4 - straight 5 - OEM 6 - RMCP+	IPMI session authentication type.
	ipmi_privilege	`integer`	1 - callback 2 - user 3 - operator 4 - admin 5 - OEM	IPMI session privilege level.
	ipmi_username	`string`		Username for IPMI checks.
	ipmi_password	`string`		Password for IPMI checks.
	tls_connect	`integer`	1 - unencrypted 2 - TLS with PSK 4 - TLS with certificate	Type of outgoing connection.
	tls_accept	`integer`	1 - unencrypted 2 - TLS with PSK 3 - unencrypted and TLS with PSK 4 - TLS with certificate 5 - unencrypted and TLS with certificate 6 - TLS with PSK or certificate 7 - unencrypted and TLS with PSK or certificate	Type of incoming connection.
	tls_issuer	`string`		Allowed agent/proxy certificate issuer.
	tls_subject	`string`		Allowed agent/proxy certificate subject.
	tls_psk_indentity	`string`		PSK identity string.
	tls_psk	`string`		PSK value string.
proxy				Proxy.
	name	`string`		Name of the proxy (if any) that monitors the host.
templates				Root element for linked templates.
template				Individual template.
	name	`string`		Template name.
interfaces				Root element for host interfaces.
interface				Individual interface.
	default	`integer`	0 - secondary 1 - primary (default)	Interface status. Only one primary interface of one type can be on a host.
	type	`integer`	0 - unknown 1 - Zabbix agent 2 - SNMP 3 - IPMI 4 - JMX	Interface type.
	useip	`integer`	0 - use DNS name 1 - use IP address	Interface to use for connecting to the host.
	ip	`string`		IP address, can be either IPv4 or IPv6.
	dns	`string`		DNS name.
	port	`string`		Port number.
	bulk	`integer`	0 - disable 1 - enable	Use bulk requests for SNMP.
	interface_ref	`string`		Interface reference name to be used in items.
applications				Root element for applications.
application				Individual application.
	name			Application name.
macros				Root element for macros.
macro				Individual macro.
	name			User macro name.
	value			User macro value.

Host item tags

Element	Element property	Type	Range	Description
items				Root element for items.
item				Individual item.
	name	`string`		Item name.
	type	`integer`	0 - Zabbix agent 1 - SNMPv1 agent 2 - Zabbix trapper 3 - simple check 4 - SNMPv2 agent 5 - internal 6 - SNMPv3 agent 7 - Zabbix agent (active) 8 - aggregate 9 - HTTP test (web monitoring scenario step) 10 - external 11 - database monitor 12 - IPMI agent 13 - SSH agent 14 - Telnet agent 15 - calculated 16 - JMX agent 17 - SNMP trap 18 - Dependent item 19 - HTTP agent item	Item type.
	snmp_community	`string`		SNMP community name if 'type' is 1,4.
	snmp_oid	`string`		SNMP object ID.
	key	`string`		Item key.
	delay	`string`		Update interval of the item. Seconds, time unit with suffix, custom intervals or user macros.
	history	`string`		A time unit of how long the history data should be stored. Time unit with suffix or user macro.
	trends	`string`		A time unit of how long the trends data should be stored. Time unit with suffix or user macro.
	status	`integer`	0 - enabled 1 - disabled	Item status.
	value_type	`integer`	0 - float 1 - character 2 - log 3 - unsigned integer 4 - text	Received value type.
	allowed_hosts	`string`		List of IP addresses (comma delimited) of hosts allowed sending data for the item if 'type' is 2 or 19.
	units	`string`		Units of returned values (bps, B).
	snmpv3_contextname	`string`		SNMPv3 context name.
	snmpv3_securityname	`string`		SNMPv3 security name.
	snmpv3_securitylevel	`integer`	0 - noAuthNoPriv 1 - authNoPriv 2 - authPriv	SNMPv3 security level.
	snmpv3_authprotocol	`integer`	0 - MD5 1 - SHA	SNMPv3 authentication protocol.
	snmpv3_authpassphrase	`string`		SNMPv3 authentication passphrase.
	snmpv3_privprotocol	`integer`	0 - DES 1 - AES	SNMPv3 privacy protocol.
	snmpv3_privpassphrase	`string`		SNMPv3 privacy passphrase.
	params	`text`		Name of the "Executed script" if 'type' is 13,14 "SQL query" field if 'type' is 11 "Formula" field if 'type' is 15.
	ipmi_sensor	`string`		IPMI sensor ID if 'type' is 12.
	authtype	`integer`	Authentication type for SSH agent items: 0 - password 1 - key Authentication type for HTTP agent items: 0 - none 1 - basic 2 - NTLM	Authentication type if 'type' is 13 or 19.
	username	`string`		User name if 'type' is 11,13,14,19.
	password	`string`		Password if 'type' is 11,13,14,19.
	publickey	`string`		Name of the public key file if 'type' is 13.
	privatekey	`string`		Name of the private key file if 'type' is 13.
	port	`string`		Custom port for the item.
	description	`text`		Item description.
	inventory_link	`integer`	0 - no link number - number of field in the 'host_inventory' table	Use item value to populate this inventory field.
	logtimefmt	`string`		Format of the time in log entries. Used only by log items.
	interface_ref	`string`		Reference to host interface.
	jmx_endpoint	`string`		JMX endpoint if 'type' is 16.
	url	`string`		URL string if 'type' is 19.
	allow_traps	`integer`	0 - Do not allow trapping. 1 - Allow trapping.	Property to allow to send data to item if 'type' is 19.
	follow_redirects	`integer`	0 - Do not follow redirects. 1 - Follow redirects.	Follow HTTP redirects if 'type' is 19.
	headers	`object`		Object with HTTP(S) request headers if 'type' is 19.
	http_proxy	`string`		HTTP(S) proxy connection string if 'type' is 19.
	output_format	`integer`	0 - Store as is. 1 - Convert to JSON.	How to process response if 'type' is 19.
	post_type	`integer`	0 - Raw data. 2 - JSON data. 3 - XML data.	Type of request body if 'type' is 19.
	posts	`text`		Request body if 'type' is 19.
	query_fields	`array`		Array of objects for request query fields if 'type' is 19.
	request_method	`integer`	0 - GET 1 - POST 2 - PUT 3 - HEAD	Request method if 'type' is 19.
	retrieve_mode	`integer`	0 - Body. 1 - Headers. 2 - Both body and headers will be stored.	What part of response should be stored if 'type' is 19.
	ssl_cert_file	`string`		Public SSL Key file path if 'type' is 19.
	ssl_key_file	`string`		Private SSL Key file path if 'type' is 19.
	ssl_key_password	`string`		Password for SSL Key file if 'type' is 19.
	status_codes	`string`		Ranges of required HTTP status codes separated by commas if 'type' is 19.
	timeout	`string`		Item data polling request timeout if 'type' is 19.
	verify_host	`integer`	0 - Do not validate. 1 - Validate.	Validate host name in URL is in Common Name field or a Subject Alternate Name field of host certificate if 'type' is 19.
	verify_peer	`integer`	0 - Do not validate. 1 - Validate.	Validate is host certificate authentic if 'type' is 19.
value map				Value map.
	name	`string`		Name of the value map to use for the item.
applications				Root element for applications.
application				Individual application.
	name			Application name.
preprocessing				Item value preprocessing.
step				Individual item value preprocessing step.
	type	`integer`	1 - custom multiplier 2 - right trim 3 - left trim 4 - trim from both sides 5 - regular expression matching 6 - boolean to decimal 7 - octal to decimal 8 - hexadecimal to decimal 9 - simple change; calculated as (received value-previous value) 10 - change per second; calculated as (received value-previous value)/(time now-time of last check) 11 - XML XPath 12 - JSONPath 13 - in range 14 - matches regular expression 15 - does not match regular expression 16 - check for error in JSON 17 - check for error in XML 18 - check for error using regular expression 19 - discard unchanged 20 - discard unchanged with heartbeat 21 - JavaScript	Type of the item value preprocessing step.
	params	`string`		Parameters of the item value preprocessing step.
	error_handler	`integer`	0 - error message is set by Zabbix server 1 - discard value 2 - set custom value 3 - set custom error message	Action type used in case of preprocessing step failure.
	error_handler_params	`string`		Error handler parameters used with 'error_handler'.
master_item				Individual item master item data.
	key	`string`		Dependent item master item key value.

Host low-level discovery rule tags

Element	Element property	Type	Range	Description
discovery_rules				Root element for low-level discovery rules.
discovery_rule				Individual low-level discovery rule.
	For most of the element tag values, see element tag values for a regular item. Only the tags that are specific to low-level discovery rules, are described below.
	lifetime	`string`		Time period after which items that are no longer discovered will be deleted. Seconds, time unit with suffix or user macro.
filter				Individual filter.
	evaltype	`integer`	0 - And/or logic 1 - And logic 2 - Or logic 3 - custom formula	Logic to use for checking low-level discovery rule filter conditions.
	formula	`string`		Custom calculation formula for filter conditions.
	conditions			Root element for filter conditions.
condition				Individual filter condition.
	macro	`string`		Low-level discovery macro name.
	value	`string`		Filter value: regular expression or global regular expression.
	operator	`integer`
	formulaid	`character`		Filter condition ID. Used in the custom calculation formula.
lld_macro_paths				Root element for LLD macro paths.
lld_macro_path				Individual LLD macro path.
	macro	`string`		Low-level discovery macro name.
	path	`string`		Selector for value which will be assigned to corresponding macro.
preprocessing				LLD rule value preprocessing.
step				Individual LLD rule value preprocessing step.
	type	`integer`	5 - regular expression matching 12 - JSONPath 15 - does not match regular expression 16 - check for error in JSON 20 - discard unchanged with heartbeat	Type of the item value preprocessing step.
	params	`string`		Parameters of the LLD rule value preprocessing step.
	error_handler	`integer`	0 - error message is set by Zabbix server 1 - discard value 2 - set custom value 3 - set custom error message	Action type used in case of preprocessing step failure.
	error_handler_params	`string`		Error handler parameters used with 'error_handler'.
item_prototypes				Root element for item_prototypes.
item_prototype				Individual item_prototype.
	For most of the element tag values, see element tag values for a regular item. Only the tags that are specific to item_prototypes, are described below.
application_prototypes				Root element for application prototypes.
application_prototype				Individual application prototype.
	name			Application prototype name.
master_item				Individual item prototype master item/item prototype data.
	key	`string`		Dependent item prototype master item/item prototype key value.

Host trigger tags

Element	Element property	Type	Range	Description
triggers				Root element for triggers.
trigger				Individual trigger.
	expression	`string`		Trigger expression.
	recovery_mode	`integer`	0 - expression 1 - recovery expression 2 - none	Basis for generating OK events.
	recovery_expression	`string`		Trigger recovery expression.
	name	`string`		Trigger name.
	correlation_mode	`integer`	0 - no event correlation 1 - event correlation by tag	Correlation mode.
	correlation_tag	`string`		The tag name to be used for event correlation.
	url	`string`		Trigger URL.
	status	`integer`	0 - enabled 1 - disabled	Trigger status.
	priority	`integer`	0 - not classified 1 - information 2 - warning 3 - average 4 - high 5 - disaster	Trigger severity.
	description	`text`		Trigger description.
	type	`integer`	0 - single problem event 1 - multiple problem events	Event generation type.
	manual_close	`integer`	0 - not allowed 1 - allowed	Manual closing of problem events.
dependencies				Root element for dependencies.
dependency				Individual dependency.
	name	`string`		Dependency trigger name.
	expression	`string`		Dependency trigger expression.
	recovery_expression	`string`		Dependency trigger recovery expression.
tags				Root element for event tags.
tag				Individual event tag.
	tag	`string`		Tag name.
	value	`string`		Tag value.

Host graph tags

Element	Element property	Type	Range	Description
graphs				Root element for graphs.
graph				Individual graph.
	name	`string`		Graph name.
	width	`integer`		Graph width, in pixels. Used for preview and for pie/exploded graphs.
	height	`integer`		Graph height, in pixels. Used for preview and for pie/exploded graphs.
	yaxismin	`double`		Value of Y axis minimum if 'ymin_type_1' is 1.
	yaxismax	`double`		Value of Y axis maximum if 'ymax_type_1' is 1.
	show_work_period	`integer`	0 - no 1 - yes	Highlight non-working hours if 'type' is 0,1.
	show_triggers	`integer`	0 - no 1 - yes	Display simple trigger values as a line if 'type' is 0,1.
	type	`integer`	0 - normal 1 - stacked 2 - pie 3 - exploded 4 - 3D pie 5 - 3D exploded	Graph type.
	show_legend	`integer`	0 - no 1 - yes	Display graph legend.
	show_3d	`integer`	0 - 2D 1 - 3D	Enable 3D style if 'type' is 2,3.
	percent_left	`double`		Show the percentile line for left axis if 'type' is 0.
	percent_right	`double`		Show the percentile line for right axis if 'type' is 0.
	ymin_type_1	`integer`	0 - calculated 1 - fixed 2 - last value of the selected item	Minimum value of Y axis if 'type' is 0,1.
	ymax_type_1	`integer`	0 - calculated 1 - fixed 2 - last value of the selected item	Maximum value of Y axis if 'type' is 0,1.
	ymin_item_1	`string`	null or item details	Item details if 'ymin_type_1' is 2.
	ymax_item_1	`string`	null or item details	Item details if 'ymax_type_1' is 2.
graph_items				Root element for graph items.
graph_item				Individual graph item.
	sortorder	`integer`		Draw order. The smaller value is drawn first. Can be used to draw lines or regions behind (or in front of) another.
	drawtype	`integer`	0 - single line 1 - filled region 2 - bold line 3 - dotted line 4 - dashed line	Draw style if graph 'type' is 0.
	color	`string`		Element colour (6 symbols, hex).
	yaxisside	`integer`	0 - left axis 1 - right axis	Y axis position (left or right) the element belongs to if graph 'type' is 0,1.
	calc_fnc	`integer`	1 - minimum 2 - average 4 - maximum 7 - all (minimum, average and maximum, if graph 'type' is 0) 9 - last (if graph 'type' is not 0,1)	Data to draw if more than one value exists for an item.
	type	`integer`	1 - value of the item is represented proportionally on the pie 2 - value of the item represents the whole pie (graph sum)	Draw type for pie/exploded graphs.
item				Individual item.
	host	`string`		Item host.
	key	`string`		Item key.

Host web scenario tags

Element	Element property	Type	Range	Description
httptests				Root element for web scenarios.
httptest				Individual web scenario.
	name	`string`		Web scenario name.
	delay	`string`		Frequency of executing the web scenario. Seconds, time unit with suffix or user macro.
	attempts	`integer`	1-10	The number of attempts for executing web scenario steps.
	agent	`string`		Client agent. Zabbix will pretend to be the selected browser. This is useful when a website returns different content for different browsers.
	http_proxy	`string`		Specify an HTTP proxy to use, using the format: `http://[username[:password]@]proxy.mycompany.com[:port]`
	variables	`text`		List of scenario-level variables (macros) that may be used in scenario steps.
	headers	`text`		HTTP headers that will be sent when performing a request.
	status	`integer`	0 - enabled 1 - disabled	Web scenario status.
	authentication	`integer`	0 - none 1 - basic 2 - NTLM	Authentication method.
	http_user	`string`		Authentication user name.
	http_password	`string`		Authentication password for specified user name.
	verify_peer	`integer`	0 - no 1 - yes	Verify the SSL certificate of the web server.
	verify_host	`integer`	0 - no 1 - yes	Verify that the Common Name field or the Subject Alternate Name field of the web server certificate matches.
	ssl_cert_file	`string`		Name of the SSL certificate file used for client authentication.
	ssl_key_file	`string`		Name of the SSL private key file used for client authentication.
	ssl_key_password	`string`		SSL private key file password.
steps				Root element for web scenario steps.
step				Individual web scenario step.
	name	`string`		Web scenario step name.
	url	`string`		URL for monitoring.
	posts	`text`		List of 'Post' variables.
	variables	`text`		List of step-level variables (macros) that should be applied after this step. If the variable value has a 'regex:' prefix, then its value is extracted from the data returned by this step according to the regular expression pattern following the 'regex:' prefix
	headers	`text`		HTTP headers that will be sent when performing a request.
	follow_redirects	`integer`	0 - no 1 - yes	Follow HTTP redirects.
	retrieve_mode	`integer`	0 - content 1 - headers only	HTTP response retrieve mode.
	timeout	`string`		Timeout of step execution. Seconds, time unit with suffix or user macro.
	required	`string`		Required string. Ignored if empty.
	status_codes	`string`		A comma delimited list of accepted status codes. Ignored if empty. For example: 200-201,210-299

Documentation
