2 Templates
Overview
Templates are exported with many related objects and object relations.
Template export contains:
- linked host groups
- template data
- linkage to other templates
- linkage to host groups
- directly linked applications
- directly linked items
- directly linked triggers
- directly linked graphs
- directly linked screens
- directly linked discovery rules with all prototypes
- directly linked web scenarios
- value maps
Exporting

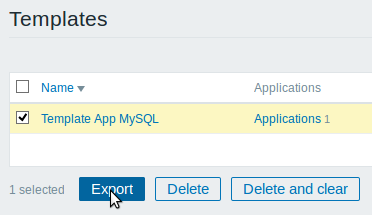

To export templates, do the following:
- Go to: Configuration → Templates
- Mark the checkboxes of the templates to export
- Click on Export below the list
Selected templates are exported to a local XML file with default name zabbix_export_templates.xml.
Importing
To import templates, do the following:
- Go to: Configuration → Templates
- Click on Import to the right
- Select the import file

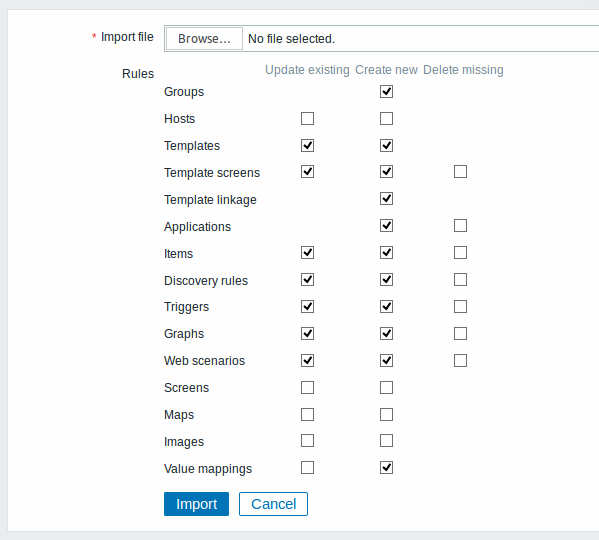

- Mark the required options in import rules
- Click on Import
When a template is imported and updated, it can only be linked to additional templates and never be unlinked from any.
A success or failure message of the import will be displayed in the frontend.
Import rules:
| Rule | Description |
|---|---|
| Update existing | Existing elements will be updated with data taken from the import file. Otherwise they will not be updated. |
| Create new | The import will add new elements using data from the import file. Otherwise it will not add them. |
| Delete missing | The import will remove existing elements not present in the import file. Otherwise it will not remove them. |
Export format
<?xml version="1.0" encoding="UTF-8"?>
<zabbix_export>
<version>4.0</version>
<date>2018-04-03T06:25:22Z</date>
<groups>
<group>
<name>Templates/Databases</name>
</group>
</groups>
<templates>
<template>
<template>Template DB MySQL</template>
<name>Template DB MySQL</name>
<description/>
<groups>
<group>
<name>Templates/Databases</name>
</group>
</groups>
<applications>
<application>
<name>MySQL</name>
</application>
</applications>
<items>
<item>
<name>MySQL status</name>
<type>0</type>
<snmp_community/>
<snmp_oid/>
<key>mysql.ping</key>
<delay>1m</delay>
<history>1w</history>
<trends>365d</trends>
<status>0</status>
<value_type>3</value_type>
<allowed_hosts/>
<units/>
<snmpv3_contextname/>
<snmpv3_securityname/>
<snmpv3_securitylevel>0</snmpv3_securitylevel>
<snmpv3_authprotocol>0</snmpv3_authprotocol>
<snmpv3_authpassphrase/>
<snmpv3_privprotocol>0</snmpv3_privprotocol>
<snmpv3_privpassphrase/>
<params/>
<ipmi_sensor/>
<authtype>0</authtype>
<username/>
<password/>
<publickey/>
<privatekey/>
<port/>
<description>It requires user parameter mysql.ping, which is defined in userparameter_mysql.conf.
0 - MySQL server is down
1 - MySQL server is up</description>
<inventory_link>0</inventory_link>
<applications>
<application>
<name>MySQL</name>
</application>
</applications>
<valuemap>
<name>Service state</name>
</valuemap>
<logtimefmt/>
<preprocessing/>
<jmx_endpoint/>
<timeout>3s</timeout>
<url/>
<query_fields/>
<posts/>
<status_codes>200</status_codes>
<follow_redirects>1</follow_redirects>
<post_type>0</post_type>
<http_proxy/>
<headers/>
<retrieve_mode>0</retrieve_mode>
<request_method>1</request_method>
<output_format>0</output_format>
<allow_traps>0</allow_traps>
<ssl_cert_file/>
<ssl_key_file/>
<ssl_key_password/>
<verify_peer>0</verify_peer>
<verify_host>0</verify_host>
<master_item/>
</item>
<item>
<name>MySQL begin operations per second</name>
<type>0</type>
<snmp_community/>
<snmp_oid/>
<key>mysql.status[Com_begin]</key>
<delay>1m</delay>
<history>1w</history>
<trends>365d</trends>
<status>0</status>
<value_type>0</value_type>
<allowed_hosts/>
<units>qps</units>
<snmpv3_contextname/>
<snmpv3_securityname/>
<snmpv3_securitylevel>0</snmpv3_securitylevel>
<snmpv3_authprotocol>0</snmpv3_authprotocol>
<snmpv3_authpassphrase/>
<snmpv3_privprotocol>0</snmpv3_privprotocol>
<snmpv3_privpassphrase/>
<params/>
<ipmi_sensor/>
<authtype>0</authtype>
<username/>
<password/>
<publickey/>
<privatekey/>
<port/>
<description>It requires user parameter mysql.status[*], which is defined in userparameter_mysql.conf.</description>
<inventory_link>0</inventory_link>
<applications>
<application>
<name>MySQL</name>
</application>
</applications>
<valuemap/>
<logtimefmt/>
<preprocessing>
<step>
<type>10</type>
<params/>
<error_handler>0</error_handler>
<error_handler_params/>
</step>
</preprocessing>
<jmx_endpoint/>
<timeout>3s</timeout>
<url/>
<query_fields/>
<posts/>
<status_codes>200</status_codes>
<follow_redirects>1</follow_redirects>
<post_type>0</post_type>
<http_proxy/>
<headers/>
<retrieve_mode>0</retrieve_mode>
<request_method>1</request_method>
<output_format>0</output_format>
<allow_traps>0</allow_traps>
<ssl_cert_file/>
<ssl_key_file/>
<ssl_key_password/>
<verify_peer>0</verify_peer>
<verify_host>0</verify_host>
<master_item/>
</item>
<item>
<name>MySQL queries per second</name>
<type>0</type>
<snmp_community/>
<snmp_oid/>
<key>mysql.status[Questions]</key>
<delay>1m</delay>
<history>1w</history>
<trends>365d</trends>
<status>0</status>
<value_type>0</value_type>
<allowed_hosts/>
<units>qps</units>
<snmpv3_contextname/>
<snmpv3_securityname/>
<snmpv3_securitylevel>0</snmpv3_securitylevel>
<snmpv3_authprotocol>0</snmpv3_authprotocol>
<snmpv3_authpassphrase/>
<snmpv3_privprotocol>0</snmpv3_privprotocol>
<snmpv3_privpassphrase/>
<params/>
<ipmi_sensor/>
<authtype>0</authtype>
<username/>
<password/>
<publickey/>
<privatekey/>
<port/>
<description>It requires user parameter mysql.status[*], which is defined in userparameter_mysql.conf.</description>
<inventory_link>0</inventory_link>
<applications>
<application>
<name>MySQL</name>
</application>
</applications>
<valuemap/>
<logtimefmt/>
<preprocessing>
<step>
<type>10</type>
<params/>
<error_handler>0</error_handler>
<error_handler_params/>
</step>
</preprocessing>
<jmx_endpoint/>
<timeout>3s</timeout>
<url/>
<query_fields/>
<posts/>
<status_codes>200</status_codes>
<follow_redirects>1</follow_redirects>
<post_type>0</post_type>
<http_proxy/>
<headers/>
<retrieve_mode>0</retrieve_mode>
<request_method>1</request_method>
<output_format>0</output_format>
<allow_traps>0</allow_traps>
<ssl_cert_file/>
<ssl_key_file/>
<ssl_key_password/>
<verify_peer>0</verify_peer>
<verify_host>0</verify_host>
<master_item/>
</item>
</items>
<discovery_rules/>
<httptests/>
<macros/>
<templates/>
<screens>
<screen>
<name>MySQL performance</name>
<hsize>2</hsize>
<vsize>1</vsize>
<screen_items>
<screen_item>
<resourcetype>0</resourcetype>
<width>500</width>
<height>200</height>
<x>0</x>
<y>0</y>
<colspan>1</colspan>
<rowspan>1</rowspan>
<elements>0</elements>
<valign>1</valign>
<halign>0</halign>
<style>0</style>
<url/>
<dynamic>0</dynamic>
<sort_triggers>0</sort_triggers>
<resource>
<name>MySQL operations</name>
<host>Template DB MySQL</host>
</resource>
<max_columns>3</max_columns>
<application/>
</screen_item>
</screen_items>
</screen>
</screens>
</template>
</templates>
<triggers>
<trigger>
<expression>{Template DB MySQL:mysql.ping.last(0)}=0</expression>
<recovery_mode>0</recovery_mode>
<recovery_expression/>
<name>MySQL is down</name>
<correlation_mode>0</correlation_mode>
<correlation_tag/>
<url/>
<status>0</status>
<priority>2</priority>
<description/>
<type>0</type>
<manual_close>0</manual_close>
<dependencies/>
<tags/>
</trigger>
</triggers>
<graphs>
<graph>
<name>MySQL operations</name>
<width>900</width>
<height>200</height>
<yaxismin>0.0000</yaxismin>
<yaxismax>100.0000</yaxismax>
<show_work_period>1</show_work_period>
<show_triggers>1</show_triggers>
<type>0</type>
<show_legend>1</show_legend>
<show_3d>0</show_3d>
<percent_left>0.0000</percent_left>
<percent_right>0.0000</percent_right>
<ymin_type_1>0</ymin_type_1>
<ymax_type_1>0</ymax_type_1>
<ymin_item_1>0</ymin_item_1>
<ymax_item_1>0</ymax_item_1>
<graph_items>
<graph_item>
<sortorder>0</sortorder>
<drawtype>0</drawtype>
<color>C8C800</color>
<yaxisside>0</yaxisside>
<calc_fnc>2</calc_fnc>
<type>0</type>
<item>
<host>Template DB MySQL</host>
<key>mysql.status[Com_begin]</key>
</item>
</graph_item>
</graph_items>
</graph>
</graphs>
<value_maps>
<value_map>
<name>Service state</name>
<mappings>
<mapping>
<value>0</value>
<newvalue>Down</newvalue>
</mapping>
<mapping>
<value>1</value>
<newvalue>Up</newvalue>
</mapping>
</mappings>
</value_map>
</value_maps>
</zabbix_export>Element tags
Element tag values are explained in the table below.
Template tags
| Element | Element property | Type | Range | Description |
|---|---|---|---|---|
| templates | Root element for templates. | |||
| template | Individual template. | |||
| template | string |
Unique template name. | ||
| name | string |
Visible template name. | ||
| description | text |
Template description. | ||
| groups | Root element for host groups. | |||
| group | Individual host group. | |||
| name | string |
Unique group name. | ||
| applications | Root element for template applications. | |||
| application | Individual template application. | |||
| name | Application name. | |||
| macros | Root element for template user macros. | |||
| macro | Individual template user macro. | |||
| name | User macro name. | |||
| value | User macro value. | |||
| templates | Root element for linked templates. | |||
| template | Individual template. | |||
| name | string |
Template name. | ||
Template item tags
| Element | Element property | Type | Range | Description |
|---|---|---|---|---|
| items | Root element for items. | |||
| item | Individual item. | |||
| name | string |
Item name. | ||
| type | integer |
0 - Zabbix agent 1 - SNMPv1 agent 2 - Zabbix trapper 3 - simple check 4 - SNMPv2 agent 5 - internal 6 - SNMPv3 agent 7 - Zabbix agent (active) 8 - aggregate 9 - HTTP test (web monitoring scenario step) 10 - external 11 - database monitor 12 - IPMI agent 13 - SSH agent 14 - Telnet agent 15 - calculated 16 - JMX agent 17 - SNMP trap 18 - Dependent item 19 - HTTP agent item |
Item type. | |
| snmp_community | string |
SNMP community name if 'type' is 1,4. | ||
| snmp_oid | string |
SNMP object ID. | ||
| key | string |
Item key. | ||
| delay | string |
Update interval of the item. Seconds, time unit with suffix, custom intervals, user macros or LLD macros. | ||
| history | string |
A time unit of how long the history data should be stored. Time unit with suffix, user macro or LLD macro. | ||
| trends | string |
A time unit of how long the trends data should be stored. Time unit with suffix, user macro or LLD macro. | ||
| status | integer |
0 - enabled 1 - disabled |
Item status. | |
| value_type | integer |
0 - float 1 - character 2 - log 3 - unsigned integer 4 - text |
Received value type. | |
| allowed_hosts | string |
List of IP addresses (comma delimited) of hosts allowed sending data for the item if 'type' is 2 or 19. | ||
| units | string |
Units of returned values (bps, B). | ||
| snmpv3_contextname | string |
SNMPv3 context name. | ||
| snmpv3_securityname | string |
SNMPv3 security name. | ||
| snmpv3_securitylevel | integer |
0 - noAuthNoPriv 1 - authNoPriv 2 - authPriv |
SNMPv3 security level. | |
| snmpv3_authprotocol | integer |
0 - MD5 1 - SHA |
SNMPv3 authentication protocol. | |
| snmpv3_authpassphrase | string |
SNMPv3 authentication passphrase. | ||
| snmpv3_privprotocol | integer |
0 - DES 1 - AES |
SNMPv3 privacy protocol. | |
| snmpv3_privpassphrase | string |
SNMPv3 privacy passphrase. | ||
| params | text |
Name of the "Executed script" if 'type' is 13,14 "SQL query" field if 'type' is 11 "Formula" field if 'type' is 15. |
||
| ipmi_sensor | string |
IPMI sensor ID if 'type' is 12. | ||
| authtype | integer |
Authentication type for SSH agent items: 0 - password 1 - key Authentication type for HTTP agent items: 0 - none 1 - basic 2 - NTLM |
Authentication type if 'type' is 13 or 19. | |
| username | string |
User name if 'type' is 11,13,14,19. | ||
| password | string |
Password if 'type' is 11,13,14,19. | ||
| publickey | string |
Name of the public key file if 'type' is 13. | ||
| privatekey | string |
Name of the private key file if 'type' is 13. | ||
| port | string |
Custom port for the item. | ||
| description | text |
Item description. | ||
| inventory_link | integer |
0 - no link number - number of field in the 'host_inventory' table |
Use item value to populate this inventory field. | |
| logtimefmt | string |
Format of the time in log entries. Used only by log items. | ||
| jmx_endpoint | string |
JMX endpoint if 'type' is 16. | ||
| url | string |
URL string if 'type' is 19. | ||
| allow_traps | integer |
0 - Do not allow trapping. 1 - Allow trapping. |
Property allows to send data to item if 'type' is 19. | |
| follow_redirects | integer |
0 - Do not follow redirects. 1 - Follow redirects. |
Follow HTTP redirects if 'type' is 19. | |
| headers | object |
Object with HTTP(S) request headers if 'type' is 19. | ||
| http_proxy | string |
HTTP(S) proxy connection string if 'type' is 19. | ||
| output_format | integer |
0 - Store as is. 1 - Convert to JSON. |
How to process response if 'type' is 19. | |
| post_type | integer |
0 - Raw data. 2 - JSON data. 3 - XML data. |
Type of request body if 'type' is 19. | |
| posts | text |
Request body if 'type' is 19. | ||
| query_fields | array |
Array of objects for request query fields if 'type' is 19. | ||
| request_method | integer |
0 - GET 1 - POST 2 - PUT 3 - HEAD |
Request method if 'type' is 19. | |
| retrieve_mode | integer |
0 - Body. 1 - Headers. 2 - Both body and headers will be stored. |
What part of response should be stored if 'type' is 19. | |
| ssl_cert_file | string |
Public SSL Key file path if 'type' is 19. | ||
| ssl_key_file | string |
Private SSL Key file path if 'type' is 19. | ||
| ssl_key_password | string |
Password for SSL Key file if 'type' is 19. | ||
| status_codes | string |
Ranges of required HTTP status codes separated by commas if 'type' is 19. | ||
| timeout | string |
Item data polling request timeout if 'type' is 19. | ||
| verify_host | integer |
0 - Do not validate. 1 - Validate. |
Validate host name in URL is in Common Name field or a Subject Alternate Name field of host certificate if 'type' is 19. | |
| verify_peer | integer |
0 - Do not validate. 1 - Validate. |
Validate is host certificate authentic if 'type' is 19. | |
| value map | Value map. | |||
| name | string |
Name of the value map to use for the item. | ||
| applications | Root element for applications. | |||
| application | Individual application. | |||
| name | Application name. | |||
| preprocessing | Item value preprocessing. | |||
| step | Individual item value preprocessing step. | |||
| type | integer |
1 - custom multiplier 2 - right trim 3 - left trim 4 - trim from both sides 5 - regular expression matching 6 - boolean to decimal 7 - octal to decimal 8 - hexadecimal to decimal 9 - simple change; calculated as (received value-previous value) 10 - change per second; calculated as (received value-previous value)/(time now-time of last check) 11 - XML XPath 12 - JSONPath 13 - in range 14 - matches regular expression 15 - does not match regular expression 16 - check for error in JSON 17 - check for error in XML 18 - check for error using regular expression 19 - discard unchanged 20 - discard unchanged with heartbeat 21 - JavaScript |
Type of the item value preprocessing step. | |
| params | string |
Parameters of the item value preprocessing step. | ||
| error_handler | integer |
0 - error message is set by Zabbix server 1 - discard value 2 - set custom value 3 - set custom error message |
Action type used in case of preprocessing step failure. | |
| error_handler_params | string |
Error handler parameters used with 'error_handler'. | ||
| master_item | Individual item master item data. | |||
| key | string |
Dependent item master item key value. | ||
Template low-level discovery rule tags
| Element | Element property | Type | Range | Description |
|---|---|---|---|---|
| discovery_rules | Root element for low-level discovery rules. | |||
| discovery_rule | Individual low-level discovery rule. | |||
| For most of the element tag values, see element tag values for a regular item. Only the tags that are specific to low-level discovery rules, are described below. | ||||
| lifetime | string |
Time period after which items that are no longer discovered will be deleted. Seconds, time unit with suffix or user macro. | ||
| filter | Individual filter. | |||
| evaltype | integer |
0 - And/or logic 1 - And logic 2 - Or logic 3 - custom formula |
Logic to use for checking low-level discovery rule filter conditions. | |
| formula | string |
Custom calculation formula for filter conditions. | ||
| conditions | Root element for filter conditions. | |||
| condition | Individual filter condition. | |||
| macro | string |
Low-level discovery macro name. | ||
| value | string |
Filter value: regular expression or global regular expression. | ||
| operator | integer |
|||
| formulaid | character |
Filter condition ID. Used in the custom calculation formula. | ||
| lld_macro_paths | Root element for LLD macro paths. | |||
| lld_macro_path | Individual LLD macro path. | |||
| macro | string |
Low-level discovery macro name. | ||
| path | string |
Selector for value which will be assigned to corresponding macro. | ||
| preprocessing | LLD rule value preprocessing. | |||
| step | Individual LLD rule value preprocessing step. | |||
| type | integer |
5 - regular expression matching 12 - JSONPath 15 - does not match regular expression 16 - check for error in JSON 20 - discard unchanged with heartbeat |
Type of the item value preprocessing step. | |
| params | string |
Parameters of the LLD rule value preprocessing step. | ||
| error_handler | integer |
0 - error message is set by Zabbix server 1 - discard value 2 - set custom value 3 - set custom error message |
Action type used in case of preprocessing step failure. | |
| error_handler_params | string |
Error handler parameters used with 'error_handler'. | ||
| item_prototypes | Root element for item_prototypes. | |||
| item_prototype | Individual item_prototype. | |||
| For most of the element tag values, see element tag values for a regular item. Only the tags that are specific to item_prototypes, are described below. | ||||
| application_prototypes | Root element for application prototypes. | |||
| application_prototype | Individual application prototype. | |||
| name | Application prototype name. | |||
| master_item | Individual item prototype master item/item prototype data. | |||
| key | string |
Dependent item prototype master item/item prototype key value. | ||
Template trigger tags
| Element | Element property | Type | Range | Description |
|---|---|---|---|---|
| triggers | Root element for triggers. | |||
| trigger | Individual trigger. | |||
| expression | string |
Trigger expression. | ||
| recovery_mode | integer |
0 - expression 1 - recovery expression 2 - none |
Basis for generating OK events. | |
| recovery_expression | string |
Trigger recovery expression. | ||
| name | string |
Trigger name. | ||
| correlation_mode | integer |
0 - no event correlation 1 - event correlation by tag |
Correlation mode. | |
| correlation_tag | string |
The tag name to be used for event correlation. | ||
| url | string |
Trigger URL. | ||
| status | integer |
0 - enabled 1 - disabled |
Trigger status. | |
| priority | integer |
0 - not classified 1 - information 2 - warning 3 - average 4 - high 5 - disaster |
Trigger severity. | |
| description | text |
Trigger description. | ||
| type | integer |
0 - single problem event 1 - multiple problem events |
Event generation type. | |
| manual_close | integer |
0 - not allowed 1 - allowed |
Manual closing of problem events. | |
| dependencies | Root element for dependencies. | |||
| dependency | Individual dependency. | |||
| name | string |
Dependency trigger name. | ||
| expression | string |
Dependency trigger expression. | ||
| recovery_expression | string |
Dependency trigger recovery expression. | ||
| tags | Root element for event tags. | |||
| tag | Individual event tag. | |||
| tag | string |
Tag name. | ||
| value | string |
Tag value. | ||
Template graph tags
| Element | Element property | Type | Range | Description |
|---|---|---|---|---|
| graphs | Root element for graphs. | |||
| graph | Individual graph. | |||
| name | string |
Graph name. | ||
| width | integer |
Graph width, in pixels. Used for preview and for pie/exploded graphs. | ||
| height | integer |
Graph height, in pixels. Used for preview and for pie/exploded graphs. | ||
| yaxismin | double |
Value of Y axis minimum if 'ymin_type_1' is 1. | ||
| yaxismax | double |
Value of Y axis maximum if 'ymax_type_1' is 1. | ||
| show_work_period | integer |
0 - no 1 - yes |
Highlight non-working hours if 'type' is 0,1. | |
| show_triggers | integer |
0 - no 1 - yes |
Display simple trigger values as a line if 'type' is 0,1. | |
| type | integer |
0 - normal 1 - stacked 2 - pie 3 - exploded 4 - 3D pie 5 - 3D exploded |
Graph type. | |
| show_legend | integer |
0 - no 1 - yes |
Display graph legend. | |
| show_3d | integer |
0 - 2D 1 - 3D |
Enable 3D style if 'type' is 2,3. | |
| percent_left | double |
Show the percentile line for left axis if 'type' is 0. | ||
| percent_right | double |
Show the percentile line for right axis if 'type' is 0. | ||
| ymin_type_1 | integer |
0 - calculated 1 - fixed 2 - last value of the selected item |
Minimum value of Y axis if 'type' is 0,1. | |
| ymax_type_1 | integer |
0 - calculated 1 - fixed 2 - last value of the selected item |
Maximum value of Y axis if 'type' is 0,1. | |
| ymin_item_1 | string |
null or item details | Item details if 'ymin_type_1' is 2. | |
| ymax_item_1 | string |
null or item details | Item details if 'ymax_type_1' is 2. | |
| graph_items | Root element for graph items. | |||
| graph_item | Individual graph item. | |||
| sortorder | integer |
Draw order. The smaller value is drawn first. Can be used to draw lines or regions behind (or in front of) another. | ||
| drawtype | integer |
0 - single line 1 - filled region 2 - bold line 3 - dotted line 4 - dashed line |
Draw style if graph 'type' is 0. | |
| color | string |
Element colour (6 symbols, hex). | ||
| yaxisside | integer |
0 - left axis 1 - right axis |
Y axis position (left or right) the element belongs to if graph 'type' is 0,1. | |
| calc_fnc | integer |
1 - minimum 2 - average 4 - maximum 7 - all (minimum, average and maximum, if graph 'type' is 0) 9 - last (if graph 'type' is not 0,1) |
Data to draw if more than one value exists for an item. | |
| type | integer |
1 - value of the item is represented proportionally on the pie 2 - value of the item represents the whole pie (graph sum) |
Draw type for pie/exploded graphs. | |
| item | Individual item. | |||
| host | string |
Item host. | ||
| key | string |
Item key. | ||
Template web scenario tags
| Element | Element property | Type | Range | Description |
|---|---|---|---|---|
| httptests | Root element for web scenarios. | |||
| httptest | Individual web scenario. | |||
| name | string |
Web scenario name. | ||
| delay | string |
Frequency of executing the web scenario. Seconds, time unit with suffix or user macro. | ||
| attempts | integer |
1-10 | The number of attempts for executing web scenario steps. | |
| agent | string |
Client agent. Zabbix will pretend to be the selected browser. This is useful when a website returns different content for different browsers. | ||
| http_proxy | string |
Specify an HTTP proxy to use, using the format: http://[username[:password]@]proxy.mycompany.com[:port] |
||
| variables | text |
List of scenario-level variables (macros) that may be used in scenario steps. | ||
| headers | text |
HTTP headers that will be sent when performing a request. | ||
| status | integer |
0 - enabled 1 - disabled |
Web scenario status. | |
| authentication | integer |
0 - none 1 - basic 2 - NTLM |
Authentication method. | |
| http_user | string |
Authentication user name. | ||
| http_password | string |
Authentication password for specified user name. | ||
| verify_peer | integer |
0 - no 1 - yes |
Verify the SSL certificate of the web server. | |
| verify_host | integer |
0 - no 1 - yes |
Verify that the Common Name field or the Subject Alternate Name field of the web server certificate matches. | |
| ssl_cert_file | string |
Name of the SSL certificate file used for client authentication. | ||
| ssl_key_file | string |
Name of the SSL private key file used for client authentication. | ||
| ssl_key_password | string |
SSL private key file password. | ||
| steps | Root element for web scenario steps. | |||
| step | Individual web scenario step. | |||
| name | string |
Web scenario step name. | ||
| url | string |
URL for monitoring. | ||
| posts | text |
List of 'Post' variables. | ||
| variables | text |
List of step-level variables (macros) that should be applied after this step. If the variable value has a 'regex:' prefix, then its value is extracted from the data returned by this step according to the regular expression pattern following the 'regex:' prefix |
||
| headers | text |
HTTP headers that will be sent when performing a request. | ||
| follow_redirects | integer |
0 - no 1 - yes |
Follow HTTP redirects. | |
| retrieve_mode | integer |
0 - content 1 - headers only |
HTTP response retrieve mode. | |
| timeout | string |
Timeout of step execution. Seconds, time unit with suffix or user macro. | ||
| required | string |
Required string. Ignored if empty. | ||
| status_codes | string |
A comma delimited list of accepted status codes. Ignored if empty. For example: 200-201,210-299 | ||
