1 Dashboard

Overview

The Monitoring → Dashboard section is designed to display summaries of all the important information.

A dashboard consists of widgets and each widget is designed to display information of a certain kind and source, which can be a summary, a map, a graph, the clock, etc.

Access to hosts in the widgets depends on host permissions.

Widgets are added and edited in the dashboard editing mode. Widgets are viewed in the dashboard viewing mode.

While in a single dashboard you can group widgets from various sources for a quick overview, it is also possible to create several dashboards containing different sets of overviews and switch between them.

The time period that is displayed in graph widgets is controlled by the time period selector located above the widgets. The time period selector label, located to the right, displays the currently selected time period. Clicking the tab label allows to expand and collapse the time period selector.

Note that when the dashboard is displayed in kiosk mode (accessible from the fullscreen mode) and widgets only are displayed, it is possible to zoom out the graph period by double clicking in the graph.

Viewing dashboards

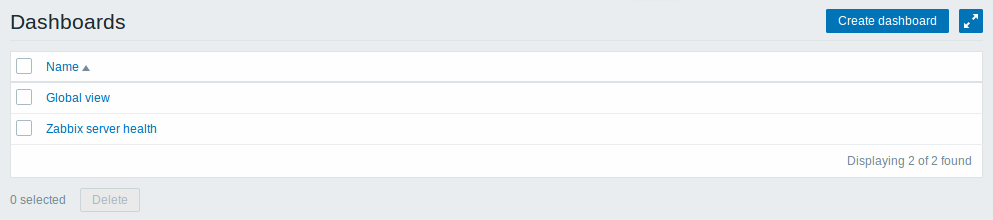

To access all configured dashboards, click on the All dashboards link just below the section title.

To view a single dashboard, click on its name in the list of all dashboards.

To delete one or several dashboards, mark the checkboxes of the respective dashboards and click on Delete below the list.

Creating a dashboard

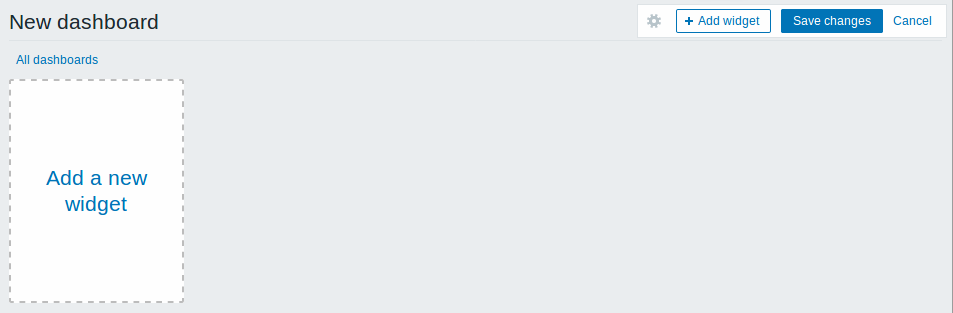

When viewing all dashboards, you can click on the Create dashboard button to create a new dashboard:

Initially the dashboard is empty. You can add widgets to the dashboard by:

• clicking on the Add widget button
• clicking on the Add a new widget link in the widget placeholder

Click on the Save changes button to save the dashboard. If you click on Cancel, the dashboard will not be created.

Adding widgets

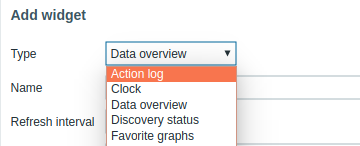

To add widget to a dashboard:

• Click on the Add widget button/link in dashboard editing mode
• Select the Type of widget
• Enter widget parameters
• Click on Add

The following widgets can be added to a dashboard:

• Action log
• Clock
• Data overview
• Discovery status
• Favorite graphs
• Favorite maps
• Favorite screens
• Graph
• Graph (classic)
• Problem hosts
• Map
• Map navigation tree
• Plain text
• Problems
• System information
• Problems by severity
• Trigger overview
• URL
• Web monitoring

In dashboard editing mode widgets can be moved around the dashboard by clicking on the widget title bar and dragging it to a new location. Also, you can click on the following buttons within the widget to:

• - edit a widget;
• - remove a widget

Click on Save changes for the dashboard to make any changes to the widgets permanent.

Dynamic widgets

When configuring some of the widgets:

• Graphs (simple and custom)
• Plain text
• URL

there is an extra option called Dynamic item. You can check this box to make the widget dynamic - i.e. capable of displaying different content based on the selected host.

Now, when saving the dashboard, you will notice that two new dropdowns have appeared atop the dashboard for selecting the host group/host:

Thus you have a widget, which can display content that is based on the data from the host that is selected in the dropdown. The benefit of this is that you do not need to create extra widgets just because, for example, you want to see the same graphs containing data from various hosts.

Viewing and editing a dashboard

When viewing a single dashboard, the following options are available:

Editing mode is opened:

• when a new dashboard is being created
• when you click the Edit dashboard button for an existing dashboard

In the dashboard editing mode the following options are available:

Permissions to dashboards

Permissions to dashboards for regular and Zabbix Admin users are limited in the following way:

• They can see and clone a dashboard if they have at least READ rights to it;
• They can edit and delete dashboard only if they have READ/WRITE rights to it;
• They cannot change the dashboard owner.

Host menu

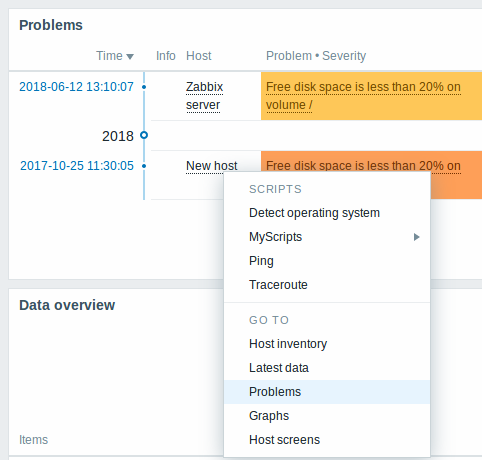

Clicking on a host in the Problems widget brings up the host menu. It includes links to custom scripts, inventory, latest data, problems, graphs and screens for the host.

The host menu is accessible by clicking on a host in several other frontend sections:

• Monitoring → Problems
• Monitoring → Problems → Event details
• Monitoring → Overview (on Hosts: left)
• Monitoring → Latest data
• Monitoring → Screens (in Host issues and Host group issues widgets)
• Monitoring → Maps
• Reports → Triggers top 100

Problem event popup

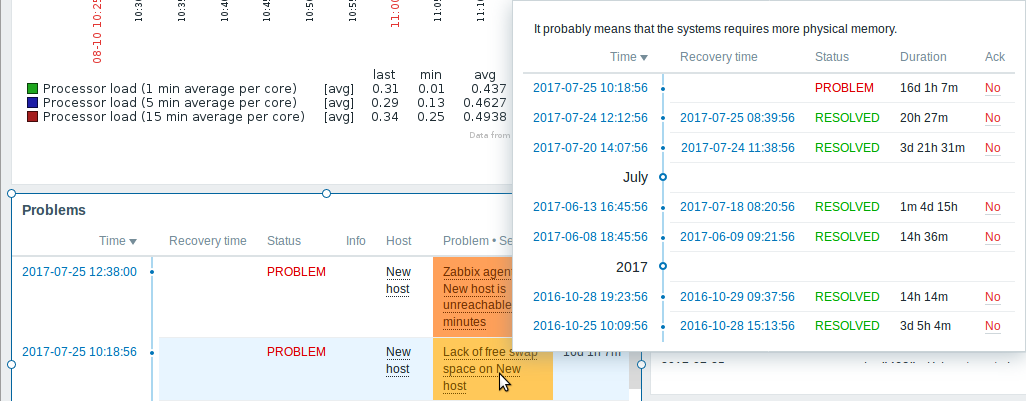

The problem event popup includes the list of problem events for this trigger and, if defined, the trigger description and a clickable URL.

To bring up the problem event popup:

• roll a mouse over the problem name in the Problem-Severity column of the Problems widget. The popup disappears once you remove the mouse from the problem name.
• click on the problem name in the Problem-Severity column of the Problems widget. The popup disappears only if you click on the problem name again.
