7 Queue

Overview

In the Administration → Queue section items that are waiting to be updated are displayed.

Ideally, when you open this section it should all be "green" meaning no items in the queue. If all items are updated without delay, there are none waiting. However, due to lacking server performance, connection problems or problems with agents, some items may get delayed and the information is displayed in this section. For more details, see the Queue section.

Queue is available only if Zabbix server is running.

The Administration → Queue section contains the following pages:

  • Queue overview — displays queue by item type;
  • Queue overview by proxy — displays queue by proxy;
  • Queue details — displays a list of delayed items.

The list of available pages appears upon pressing on Queue in the Administration menu section. It is also possible to switch between pages by using a title dropdown in the top left corner.

Third-level menu. Title dropdown.

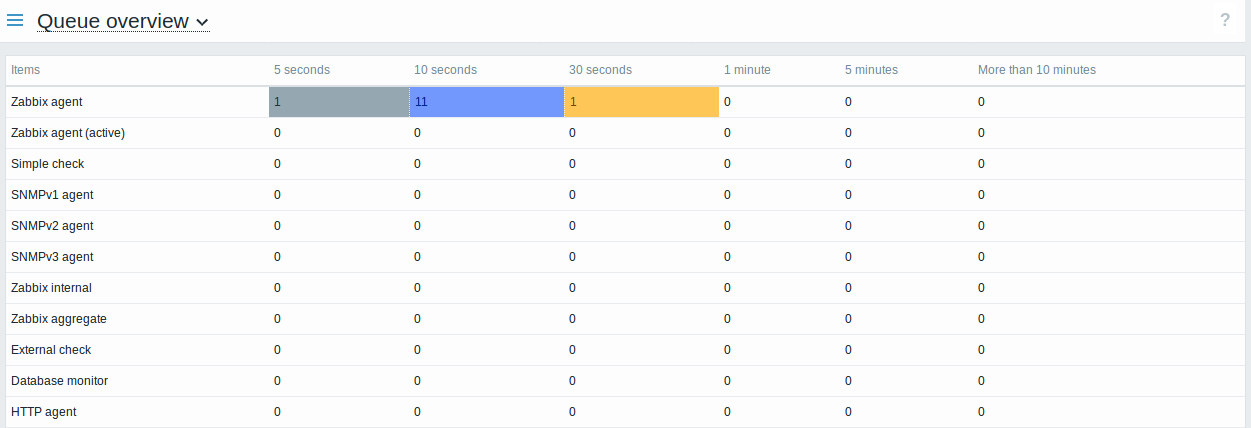

Overview by item type

In this screen it is easy to locate if the problem is related to one or several item types.

Each line contains an item type. Each column shows the number of waiting items - waiting for 5-10 seconds/10-30 seconds/30-60 seconds/1-5 minutes/5-10 minutes or over 10 minutes respectively.

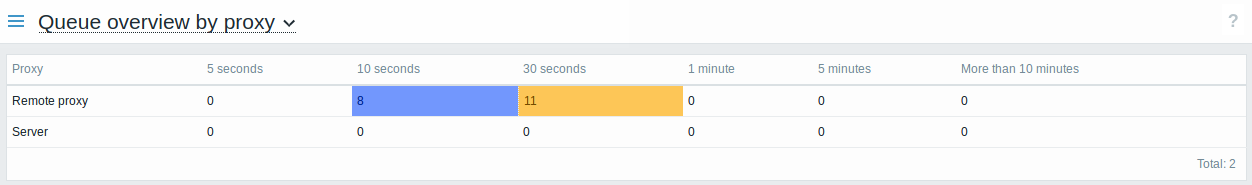

Overview by proxy

In this screen it is easy to locate if the problem is related to one of the proxies or the server.

Each line contains a proxy, with the server last in the list. Each column shows the number of waiting items - waiting for 5-10 seconds/10-30 seconds/30-60 seconds/1-5 minutes/5-10 minutes or over 10 minutes respectively.

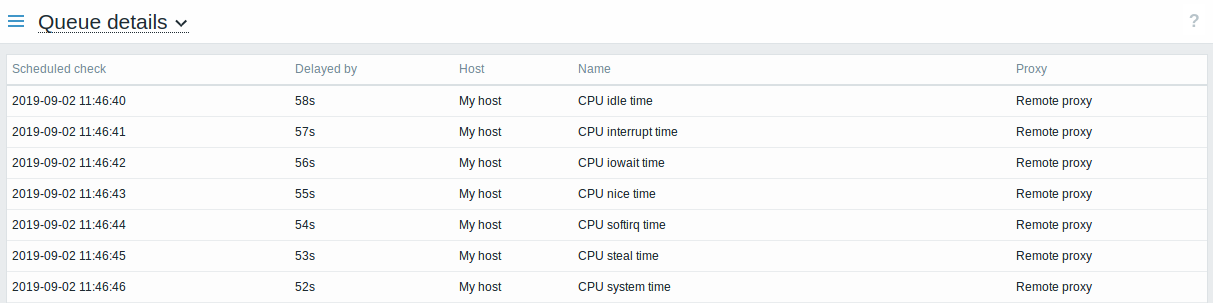

List of waiting items

In this screen, each waiting item is listed.

Displayed data:

Column Description
Scheduled check The time when the check was due is displayed.
Delayed by The length of the delay is displayed.
Host Host of the item is displayed.
Name Name of the waiting item is displayed.
Proxy The proxy name is displayed, if the host is monitored by proxy.
Possible error messages

You may encounter a situation when no data is displayed and the following error message appears:

Error message in this case is the following:

Cannot display item queue. Permission denied

This happens when the PHP configuration parameters in the zabbix.conf.php file - $ZBX_SERVER or both $ZBX_SERVER and $ZBX_SERVER_PORT - point to an existing Zabbix server that uses a different database.
